Pneumatic Scrap Handling

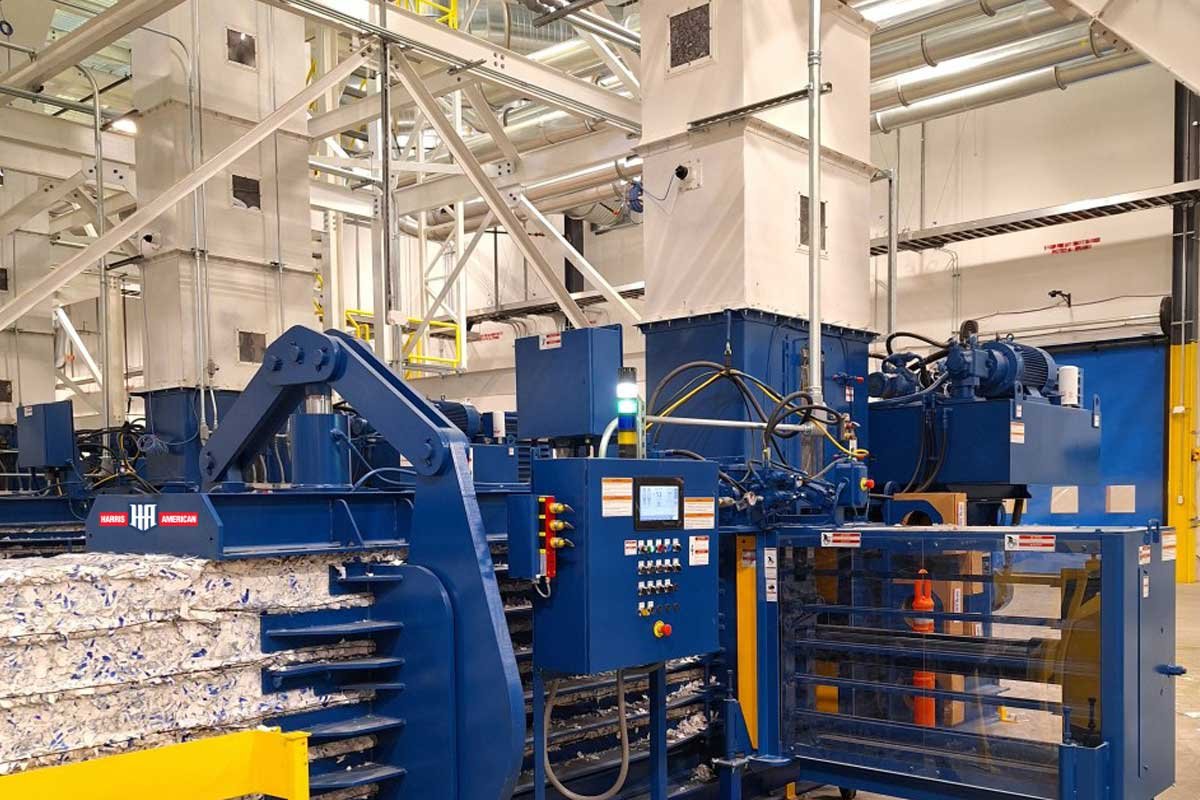

Harris American 29N Series Baler

Name: Harris American 29N Series Baler
Brand: Harris American Company

Harris American Companynew

Request a Quote Contact Us

Key advantages

Single tension cylinder — the side and top channels are hinged, creating four-way tension and 3× the friction force of competitive designs, for heavier bales
Pull-technology auto-tier — pulls the opposite side wire through the twisting, cutting and knotting process; the tier sits on castors so it opens for inspection and adjustment
Subfloor system — heavy construction with an inner liner on the floor and ram bottoms, longer lasting and far cheaper to renew than the competition
Category III safety features, all standard

Bale size	30 in. × 43 in. × variable
Width	29 in.
Hopper length	30, 40 or 50
Main cylinder	9 in. or 10 in. bore, trunnion design
System pressure	3,000 psi
Main motor	30, 50, 75, twin 30 or twin 50 HP
Feed type	Air trim system or conveyor
Shear	Available with or without shear blade
Safety	Meets all current ANSI 245.5 safety standards
