Pneumatic Scrap Handling
Harris American WN Series Baler
Harris American Companynew
Ready to learn more?

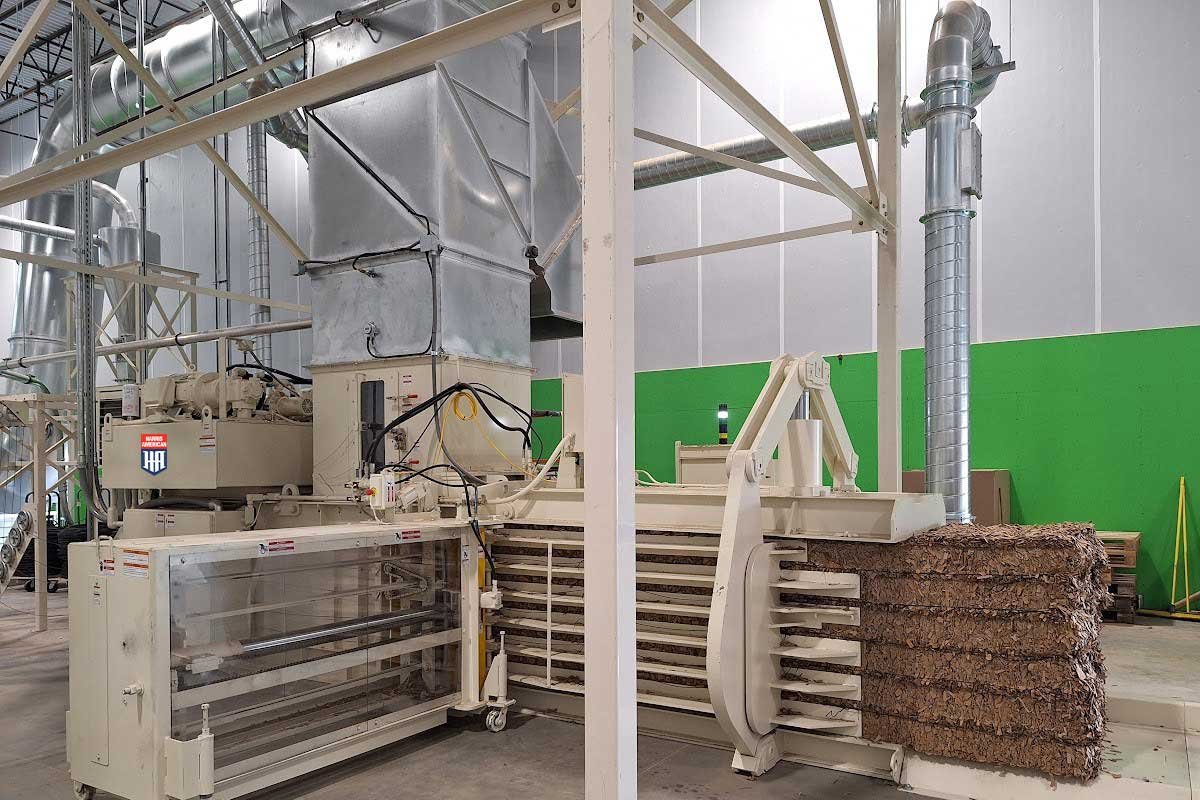

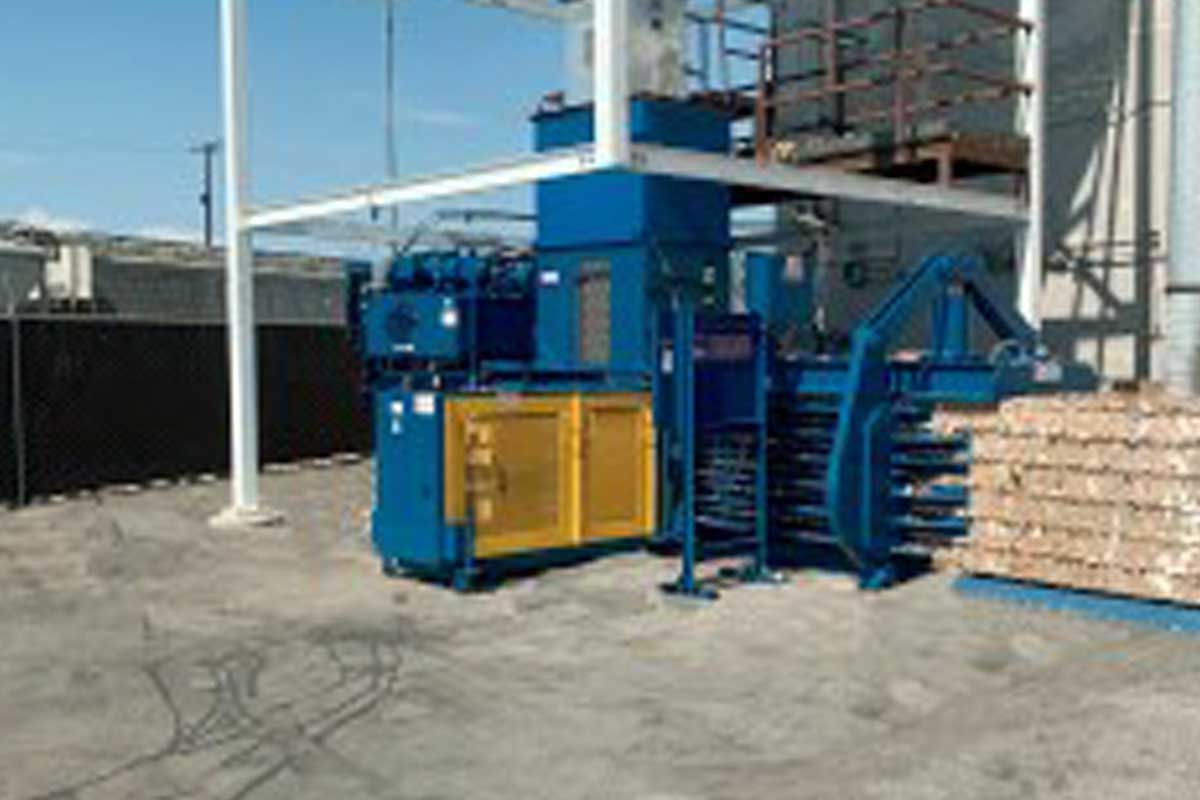

Harris American WN Series Baler
Key advantages
- Single tension cylinder — the side and top channels are hinged, creating four-way tension and 3× the friction force of competitive designs, for heavier bales
- Pull-technology auto-tier — pulls the opposite side wire through the twisting, cutting and knotting process; the tier sits on castors so it opens for inspection and adjustment
- Subfloor system — heavy construction with an inner liner on the floor and ram bottoms, longer lasting and far cheaper to renew than the competition
- Category III safety features, all standard
WN Series specifications
| Models | 5042WN-10 |
|---|---|
| Bale size | 43 in. × 43 in. × variable |
| Main cylinder | 10 in. bore, trunnion design |
| System pressure | 3,000 psi |
| Main motor | 30, 50, 75, twin 30 or twin 50 HP |
| Feed type | Air system |
| Shear | None — clearance baler |
| Safety | Meets all current ANSI 245.5 safety standards |
Production options
- Remote floor mounted power unit
- Additional 4 ft bale tables
- Bale run-out sensor
- Off-side tier controls
- Hydraulic oil shipped in the baler reservoir
- Wire run-out sensors
- Increased accessory equipment controls up to 15 HP
- Water mist, four nozzle
- Bulk wire system
