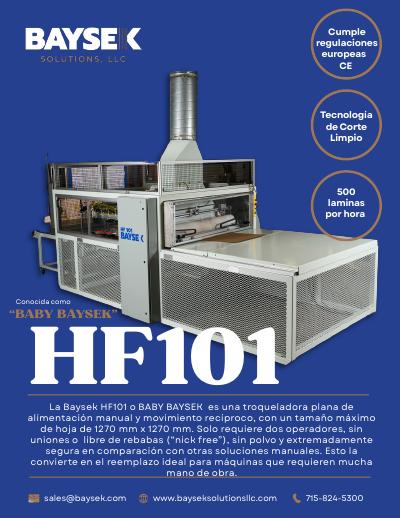

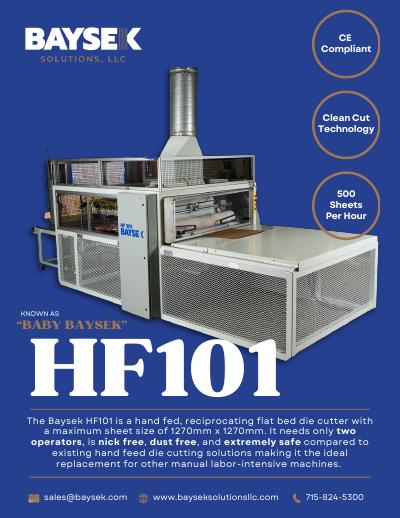

Baysek HF101 Hand-Fed Die Cutter

Name: Baysek HF101 Hand-Fed Die Cutter
Brand: Baysek Solutions

Baysek Solutionsnew

Request a Quote → Contact Us

Request a Quote Contact Us

Start small

The HF101 delivers Baysek cut quality — 100% perimeter cut, no nicks, fully stripped waste — at a fraction of the footprint and cost of the automatic machines. Because dies are interchangeable across the Baysek range, work developed on an HF101 transfers to a C-170 or C-190 without new tooling.

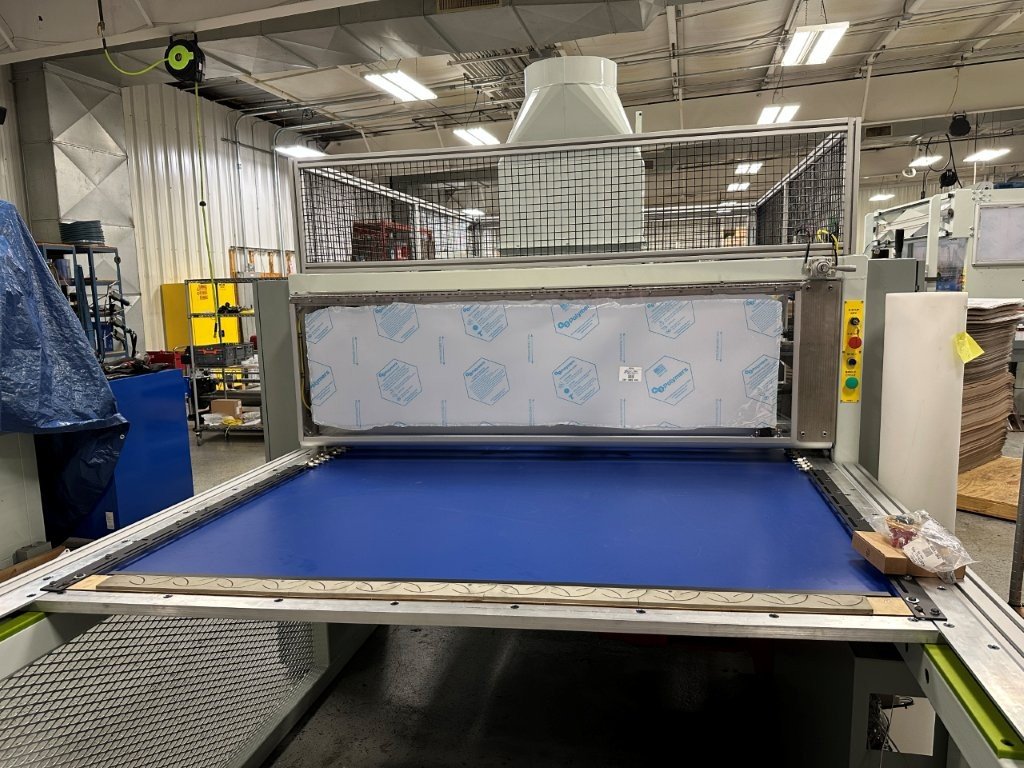

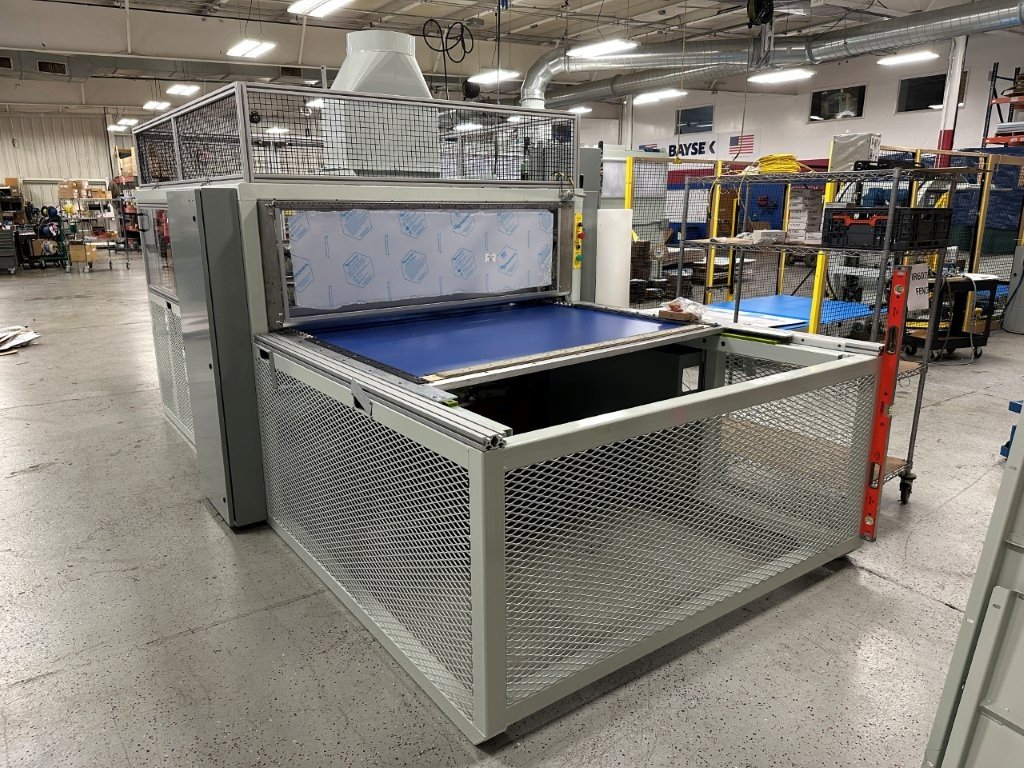

Baysek HF101 cutting bed — The 50 in. square cutting bed

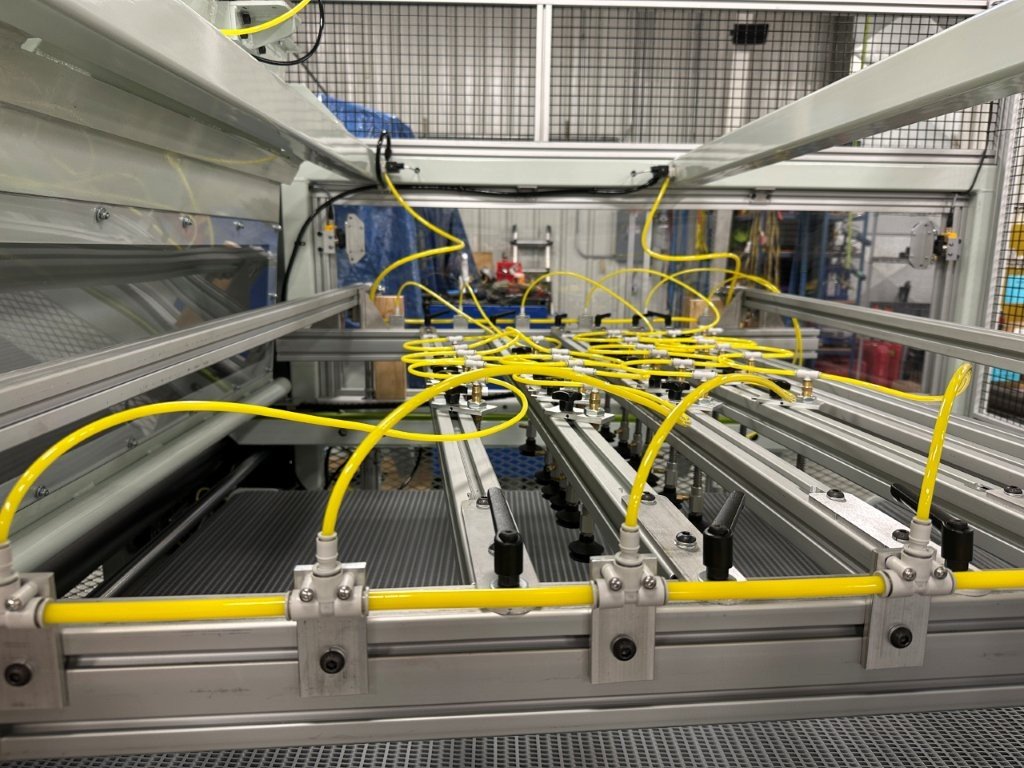

Baysek HF101 unload suction bars — Six unload bars carry 36 suction cup assemblies

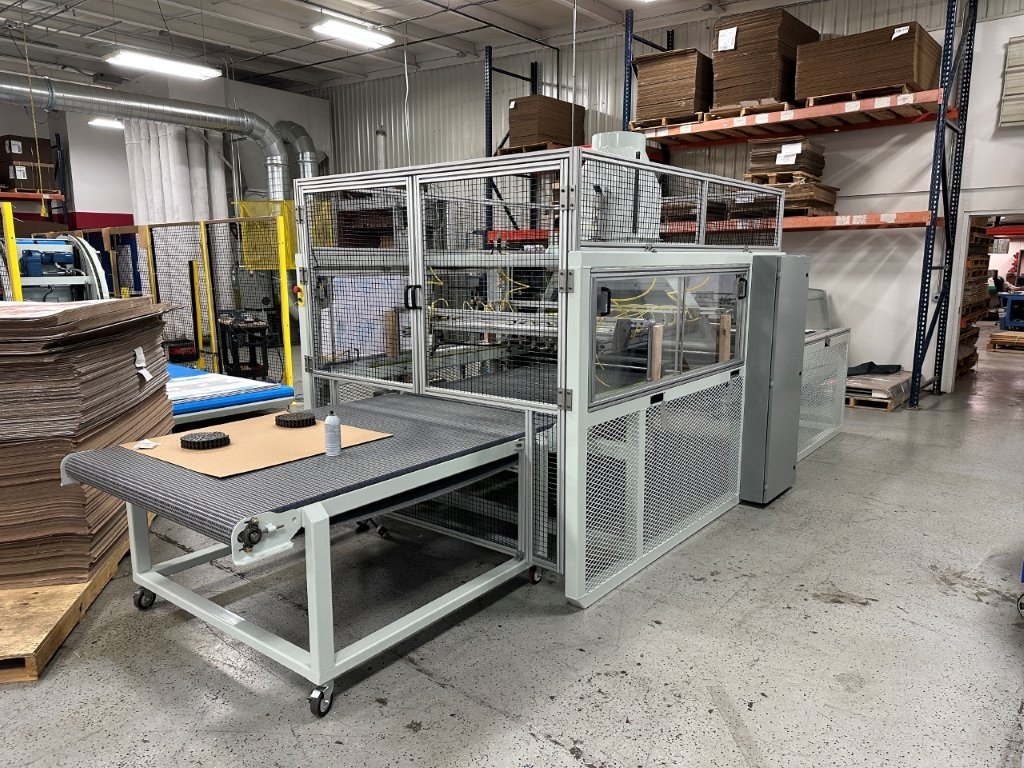

Baysek HF101 with outfeed conveyor — Outfeed side

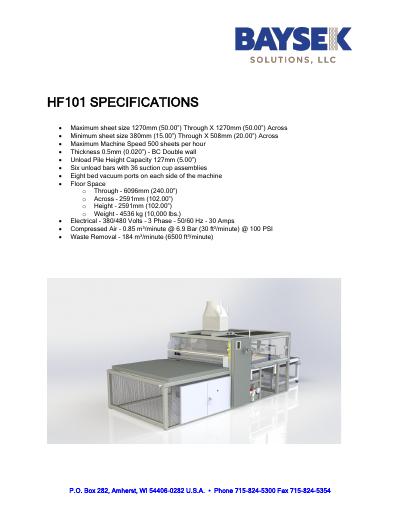

HF101 specifications

Maximum sheet size	1270 mm (50 in.) through × 1270 mm (50 in.) across
Minimum sheet size	380 mm (15 in.) through × 508 mm (20 in.) across
Speed	500 sheets per hour maximum
Board thickness	0.5 mm (0.020 in.) to BC double wall
Unload pile height	127 mm (5 in.)
Unload	Six unload bars with 36 suction cup assemblies
Bed vacuum	Eight bed vacuum ports on each side of the machine
Floor space	6096 mm (240 in.) through × 2591 mm (102 in.) across
Height	2591 mm (102 in.)
Weight	4536 kg (10,000 lbs.)
Electrical	380/480 V · 3 phase · 50/60 Hz · 30 A
Compressed air	0.85 m³/min at 6.9 bar (30 ft³/min at 100 PSI)
Waste removal	184 m³/min (6,500 ft³/min)

Cutting die dimensions

Maximum wood size	1422 mm (56 in.) across · 1448 mm (57 in.) through with leveling die
Minimum wood size	610 mm (24 in.) across · 500 mm (20 in.) through
Wood thickness	16 mm (0.625 in.) single wall substrate · 12 mm (0.500 in.) double wall
Maximum knife size	1245 mm (50 in.) across × 1245 mm (50 in.) through
Minimum knife size	483 mm (19 in.) across · 355 mm (14 in.) through
