Baysek IR-6075 PreFeeder & Load Turner

Name: Baysek IR-6075 PreFeeder & Load Turner
Brand: Baysek Solutions

Baysek Solutionsnew

Request a Quote → Contact Us

Request a Quote Contact Us

Two models

I-6075 — 180° load inverting, quick and easy, saving the time and the injury risk of turning and restacking loads by hand for inspection and production.

IR-6075 — 180° rotating and inverting with three-way discharge. Loads are sent to a multi-conveyor selection from the touch screen, top or bottom sheet side up at discharge, with no hydraulics involved.

Variable speed vibration is optional on all models, for squaring and centring loads and for shaking out damaged sheets and dunnage. Custom builds to specification are available on request.

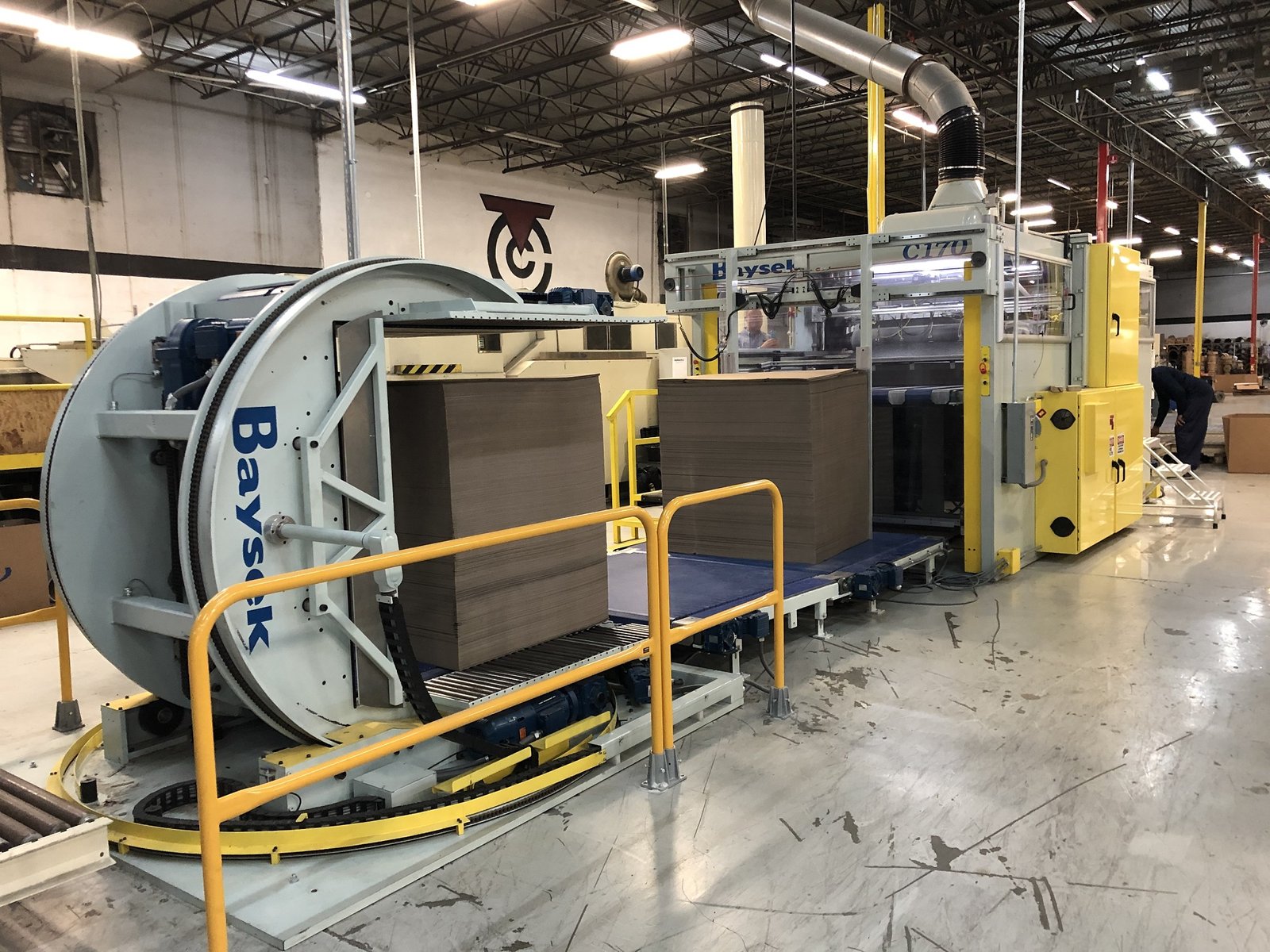

Baysek load turner in line with a die cutter — In line with a Baysek die cutter

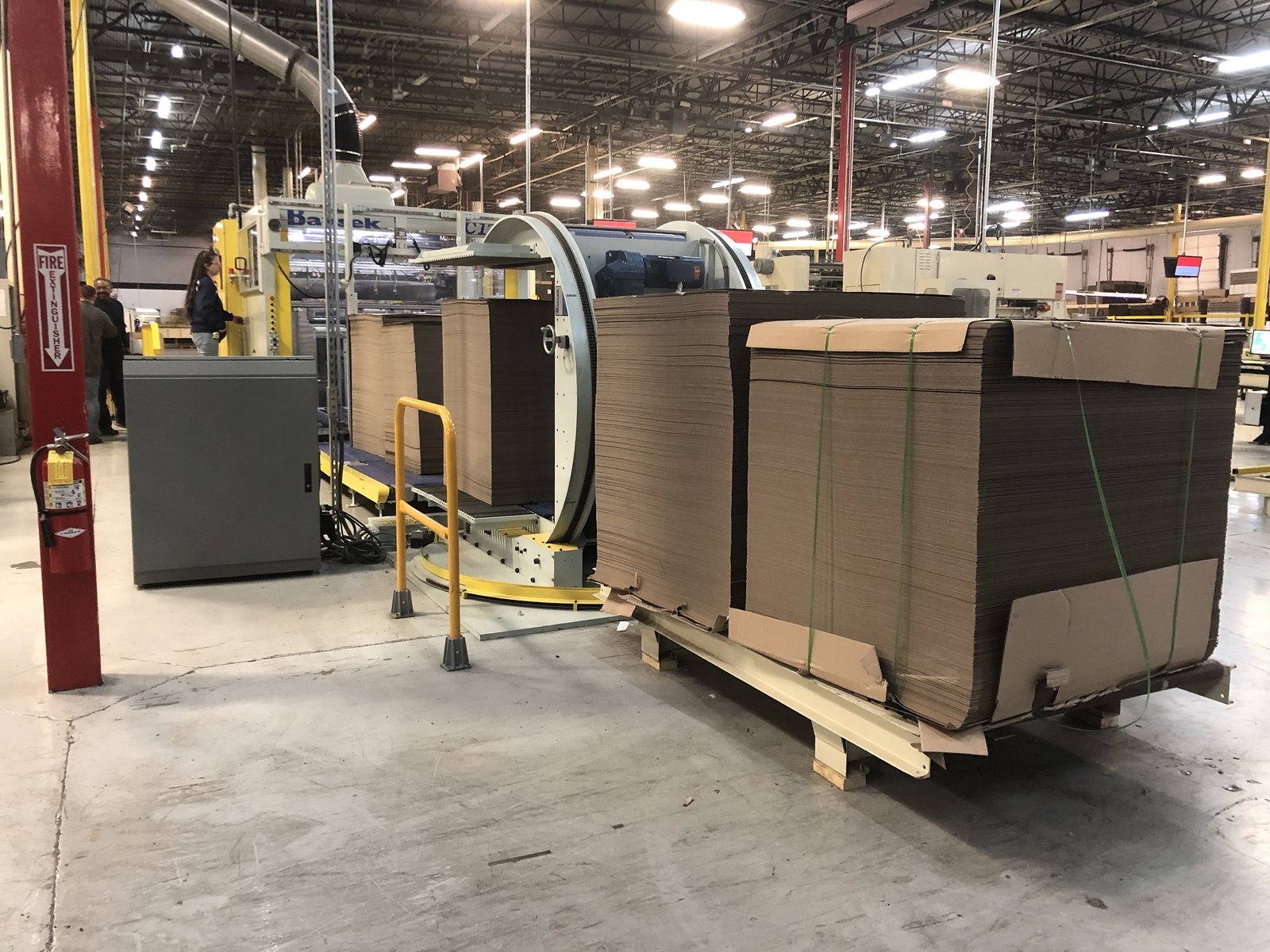

Baysek load turner installed on a production line — Installed on the production line

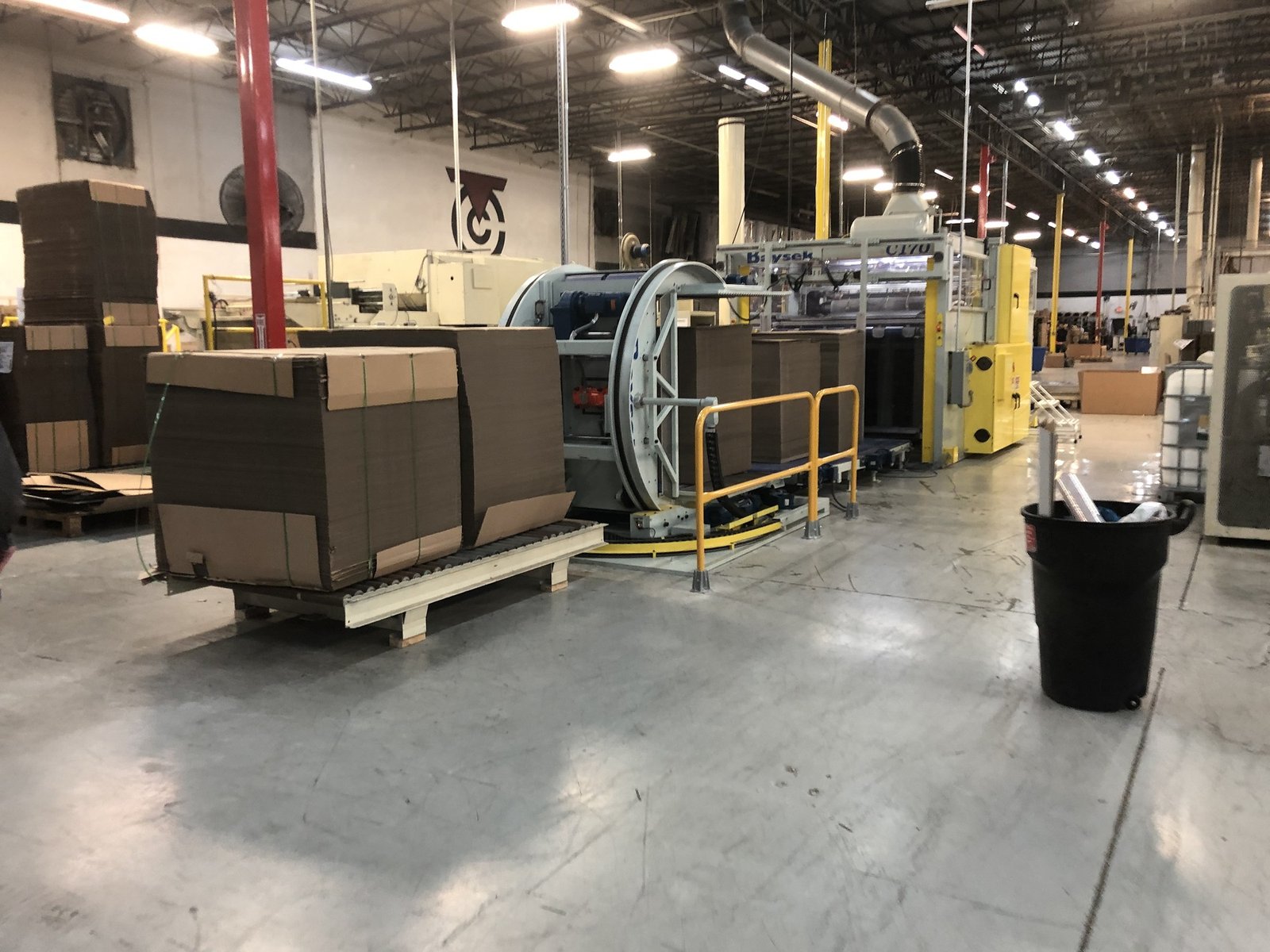

Baysek load turner discharge side — Discharge side

Features

180° load turn and 180° load rotation
Three side discharge
One operator, easy touch control panel
Variable speed vibration
No pit required
Standard frame 60 in. × 75 in., maximum opening 54 in., clamp minimum 34 in.

IR-6075 specifications

Sheet size — through	Max 1525 mm (60 in.) · Min 510 mm (20 in.)
Sheet size — across	Max 1905 mm (75 in.) · Min 965 mm (38 in.)
Load height	Max 1372 mm (54 in.) · Min 864 mm (34 in.)
Load capacity	1,500 lbs.
Floor space	2440 mm (96 in.) through × 2285 mm (90 in.) across, control cabinet excluded
Height	2030 mm (80 in.)
Conveyor height	343 mm (13.5 in.)
Weight	4309 kg (9,500 lbs.)
Electrical	480 V · 3 phase · 60 Hz · 30 A
