Tape Application Systems

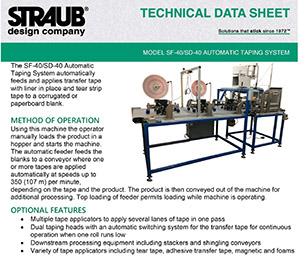

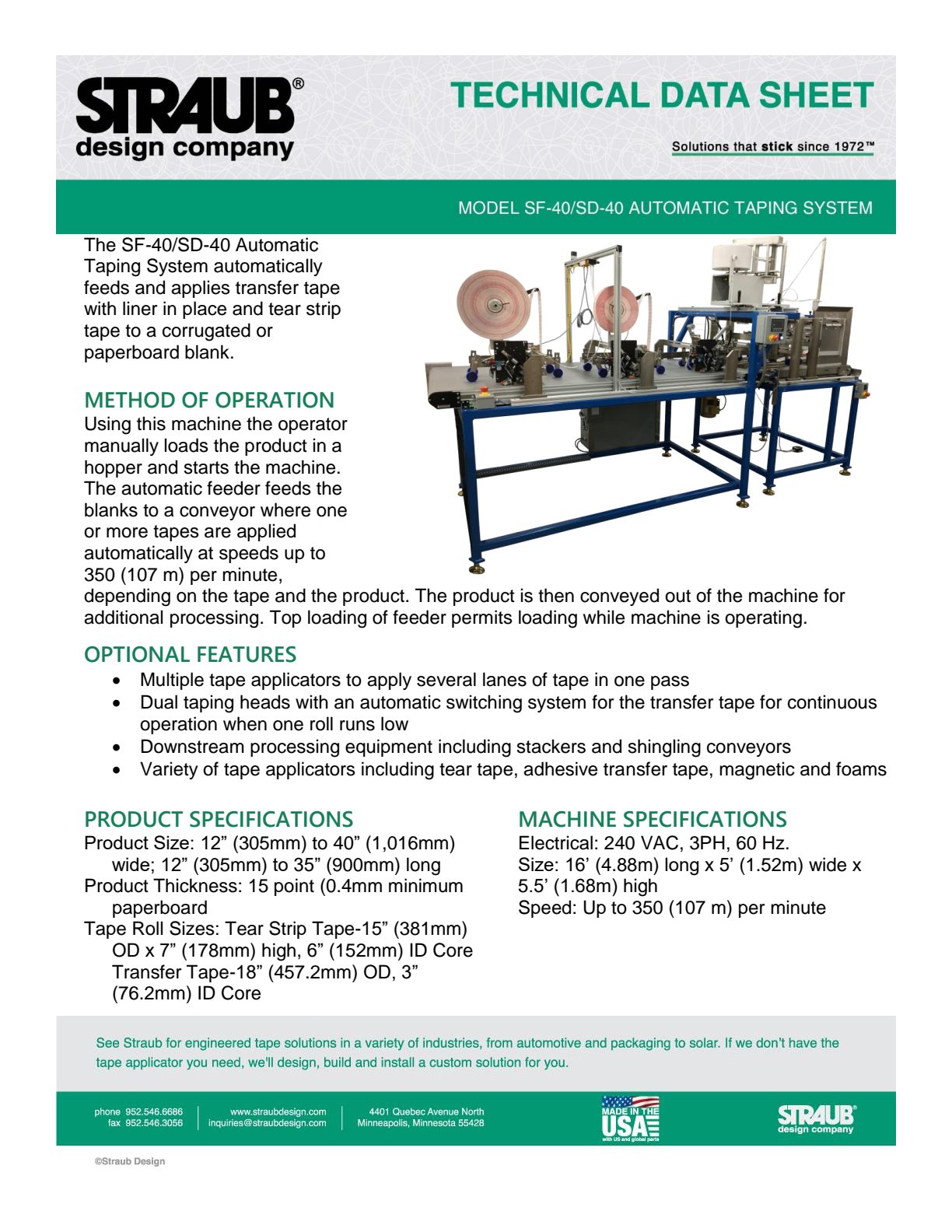

The SD-40/SF-40 Automatic Taping System automatically feeds and applies transfer tape with liner in place and tear strip tape to a corrugated or paperboard blank at up to 350’ per minute. The compact footprint – requires less floor space than folder/ gluer. Removes taping from the folder/gluer and allows you to use the folder/gluer as it was intended and at the speeds it was intended to run

• SD/SF system is available in 40” (1016mm) / 50”(1270mm) / 60” (1524mm) widths
• Options available / accessories available:
  • Tear Tape applicator
  • Tape splicer (SD-660) for double-sided tape applicators
  • Shingling conveyor
  • Stacker

• Tear Tape applicator
• Tape splicer (SD-660) for double-sided tape applicators
• Shingling conveyor
• Stacker

• Electrical: 230VAC, 3PH, 60 Hz (480VAC available upon request)
• Speed: Up to 350 feet per minute
• Size: 16' long x 5' wide x 5 ½' high

• Product Size: 12" to 40" wide; 12" to 50" Long
• Tape Roll Sizes:
  • 15" OD x 7" high 6" ID Core (Tear Strip Tape)
  • 18" OD, 3" ID Core (Double-side Tape or Transfer Tape)

• 15" OD x 7" high 6" ID Core (Tear Strip Tape)
• 18" OD, 3" ID Core (Double-side Tape or Transfer Tape)

• Multiple tape applicators to apply several lanes of tape in one pass
• Dual taping heads with an automatic switching system for the transfer tape for continuous operation when one roll runs low
• Downstream processing equipment

The packaging industry over the past few decades has shifted from shipping bulk packages to brick and mortar locations to shipping smaller packages for eCommerce directly to the customers. In a world where speed and efficiency is crucial, Straub Design can provide solutions that are tailored to your needs. Our tape applicators can apply a variety of double-sided, adhesive transfer tapes for sealing products and tear tapes/reinforcement tapes for opening the box or strengthening parts of it. Straub tape application systems can be used on a wide variety of boxes, packages and mailers.

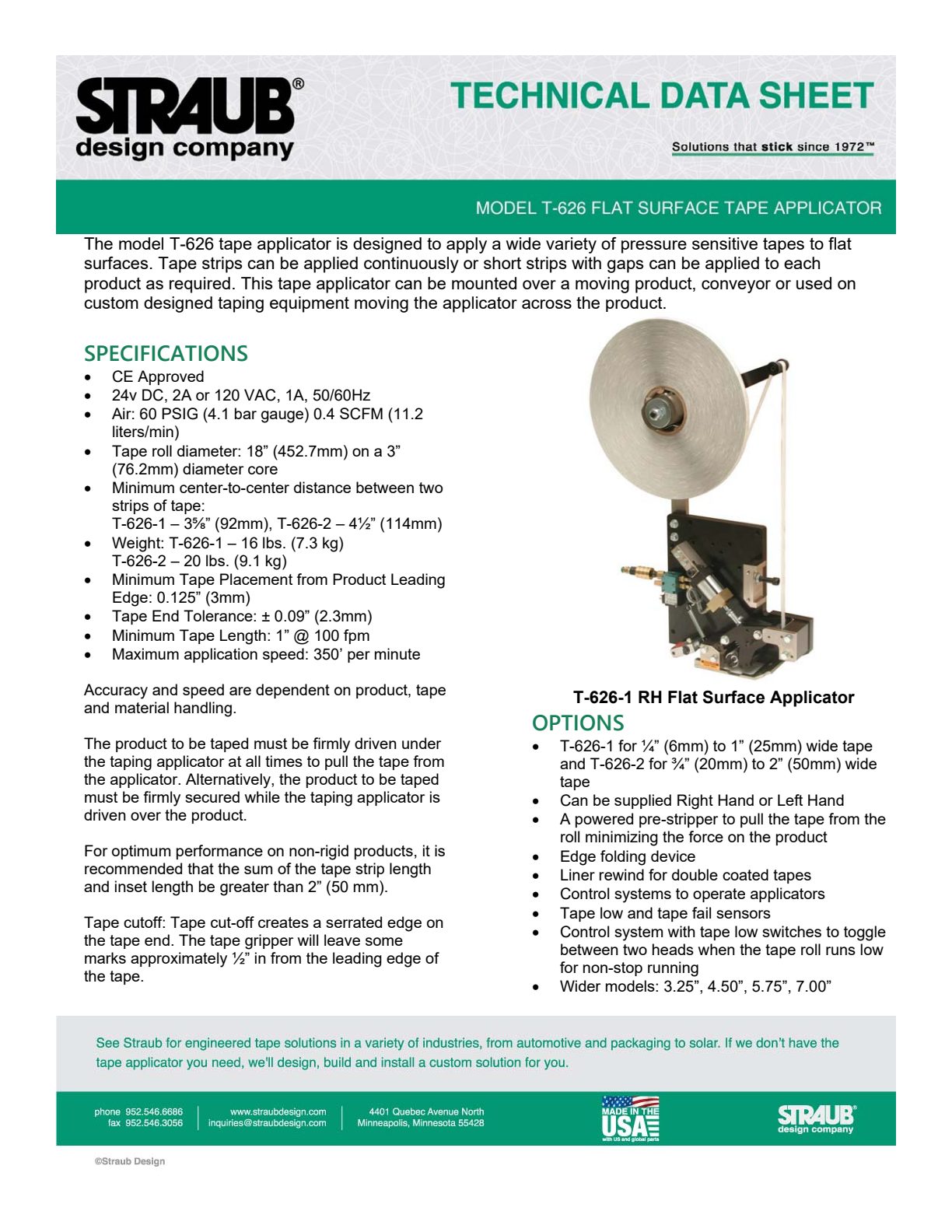

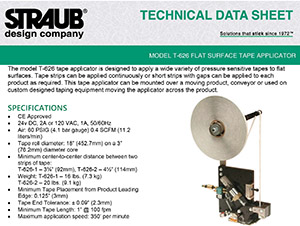

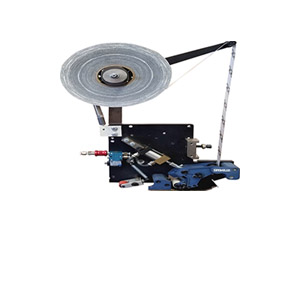

The model T-626 tape applicator is designed to apply a wide variety of pressure sensitive tapes to flat surfaces. The T-626 is a versatile machine that can work in many different industries including the packaging industry by retrofitting it to a Specialty Folder Gluer.

• T-626 (standard) applies tape up to 350 FPM / 107 MPM
• T-626 Heavy Duty applies tape up to 500 FPM / 153 MPM
• T-626U (ultra) applies tape up to 750 FPM / 230 MPM

The speeds are all dependent on the product / material handling (conveying) and the tape being applied.

• CE Approved
• 24VDC, 12VDC or 120 VAC
• Air: 60 PSIG (4.1 bar gauge) 0.4 SCFM (11.2 liters/min)
• Tape roll diameter: 18” (452.7mm) on a 3” (76.2mm) diameter core
• Minimum center-to-center distance between two strips of tape:
  • T-626-1 – 3 ⅝” (92mm), T-626-2 – 4 ½” (114mm)
• Weight: T-626-1 – 15 lbs. (6.8 kg)
• T-626-2 – 18 lbs. (8.2 kg)
• Minimum Tape Placement from Product Leading Edge: 0.125” (3mm)
• Tape End Tolerance: ± 0.125” (3mm)
• Minimum Tape Length: 1” @ 100 fpm (dependent on tape and product)
• Maximum application speed: 350 feet per minute

• T-626-1 – 3 ⅝” (92mm), T-626-2 – 4 ½” (114mm)

*Available to specific countries; please consult with Goettsch International for availability

• SD/SF system is available in 40” (1016mm) / 50”(1270mm) / 60” (1524mm) widths
• Options available / accessories available:
  • Tear Tape applicator
  • Tape splicer (SD-660) for double-sided tape applicators
  • Shingling conveyor
  • Stacker

• Tear Tape applicator
• Tape splicer (SD-660) for double-sided tape applicators
• Shingling conveyor
• Stacker

• Electrical: 230VAC, 3PH, 60 Hz (480VAC available upon request)
• Speed: Up to 350 feet per minute
• Size: 16' long x 5' wide x 5 ½' high

• Product Size: 12" to 40" wide; 12" to 50" Long
• Tape Roll Sizes:
  • 15" OD x 7" high 6" ID Core (Tear Strip Tape)
  • 18" OD, 3" ID Core (Double-side Tape or Transfer Tape)

• 15" OD x 7" high 6" ID Core (Tear Strip Tape)
• 18" OD, 3" ID Core (Double-side Tape or Transfer Tape)

• Multiple tape applicators to apply several lanes of tape in one pass
• Dual taping heads with an automatic switching system for the transfer tape for continuous operation when one roll runs low
• Downstream processing equipment

The model T-626 tape applicator is designed to apply a wide variety of pressure sensitive tapes to flat surfaces. The T-626 is a versatile machine that can work in many different industries including the packaging industry by retrofitting it to a Specialty Folder Gluer.

• T-626 (standard) applies tape up to 350 FPM / 107 MPM
• T-626 Heavy Duty applies tape up to 500 FPM / 153 MPM
• T-626U (ultra) applies tape up to 750 FPM / 230 MPM

The speeds are all dependent on the product / material handling (conveying) and the tape being applied.

• CE Approved
• 24VDC, 12VDC or 120 VAC
• Air: 60 PSIG (4.1 bar gauge) 0.4 SCFM (11.2 liters/min)
• Tape roll diameter: 18” (452.7mm) on a 3” (76.2mm) diameter core
• Minimum center-to-center distance between two strips of tape:
  • T-626-1 – 3 ⅝” (92mm), T-626-2 – 4 ½” (114mm)
• Weight: T-626-1 – 15 lbs. (6.8 kg)
• T-626-2 – 18 lbs. (8.2 kg)
• Minimum Tape Placement from Product Leading Edge: 0.125” (3mm)
• Tape End Tolerance: ± 0.125” (3mm)
• Minimum Tape Length: 1” @ 100 fpm (dependent on tape and product)
• Maximum application speed: 350 feet per minute

• T-626-1 – 3 ⅝” (92mm), T-626-2 – 4 ½” (114mm)

*Available to specific countries; please consult with Goettsch International for availability
