Two Complete High-Graphics Die-Cutter Lines

Turnkey installation of dual high-graphics rotary die-cutter lines with infeed, discharge, bundle handling and scrap systems.

Discuss a Similar Project → Browse Case Studies

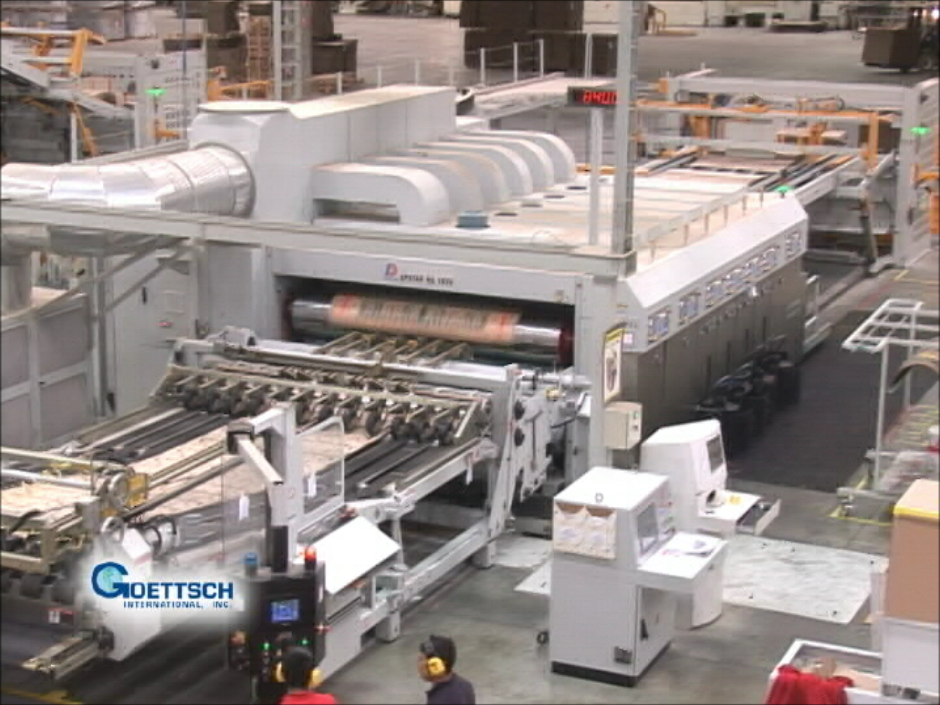

Goettsch production line system: Dong Fang Apstar rotary die cutter, Geo. M. Martin stacker, C & M conveyors and WSA load former.

Project Overview

What we built

New corrugated plant in South America. Goettsch designed, delivered and installed two complete high-graphics die cutter lines as a single turnkey project — from prefeeders through load formers.

Bill of Equipment

Lines, machines and partners

Prefeeders	Woosung Autocon (WSA) 2000 × 2800
Rotary Die Cutters	Dong Fang Apstar HG 1628 — 3 & 4 color high-graphics machines
Stackers	Geo. M. Martin Series II Stackers with optional right-angle bundle conveyor for strapping line
Conveyors	C & M Conveyor floor and bundle conveyors
Load Formers	Woosung Autocon (WSA) 1800 × 1800

Outcome

Why it works

A cost-effective solution for two complete high-volume, high-graphics lines meeting the customer’s financial and operational objectives.

Beyond the line

Additional scope

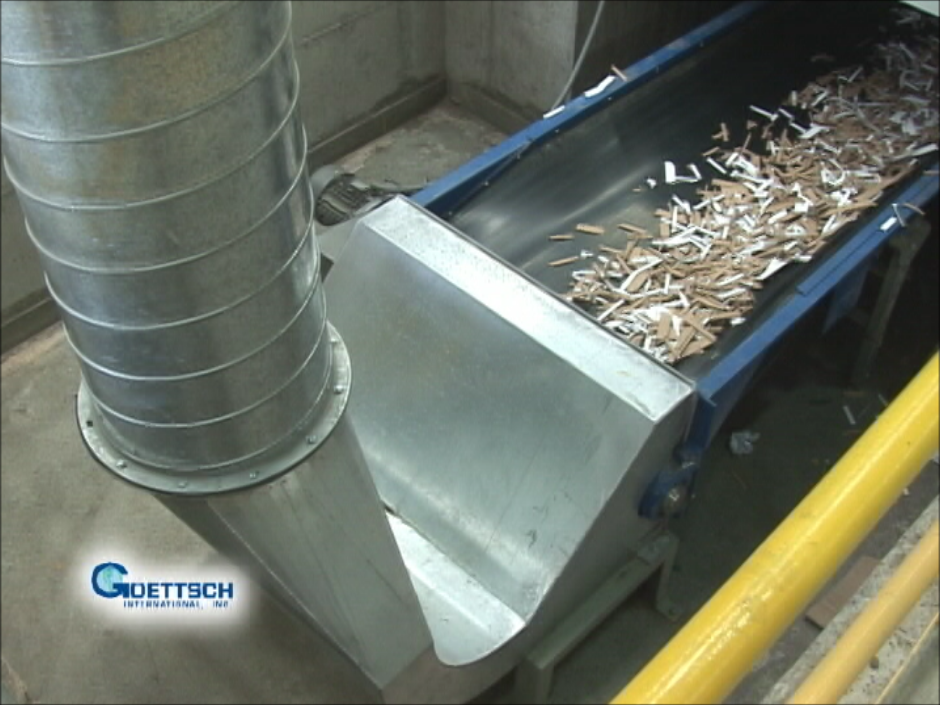

Goettsch also designed and installed (not shown in video) a complete air scrap system from the corrugator and all finishing lines, including a KWS pit conveyor, Midsouth ductwork, BloApCo material handling fans, shredder, under-roof dust collector and an American Baler 4029 auto-tie baler.
