Case Study · Corrugating / Converting
High-Speed RDC Bundle-Line Components
Integrated bundle-handling components added to an existing high-speed rotary die-cutter installation for improved throughput.
Project Overview
What we built
Corrugated plant in South Africa. Goettsch designed, delivered and installed infeed conveyor, prefeeder, bundle stacker with conveyor and high-speed bundle breaker, pairing conveyor, turntable, accumulating bundle conveyor and high-speed load former to maximize the customer’s die cutter line.
Lines, machines and partners
| Infeed Conveyor | Woosung Autocon (WSA) plastic belt conveyor |
|---|---|
| Prefeeder | WSA bottom-print continuous-feed automatic prefeeder |

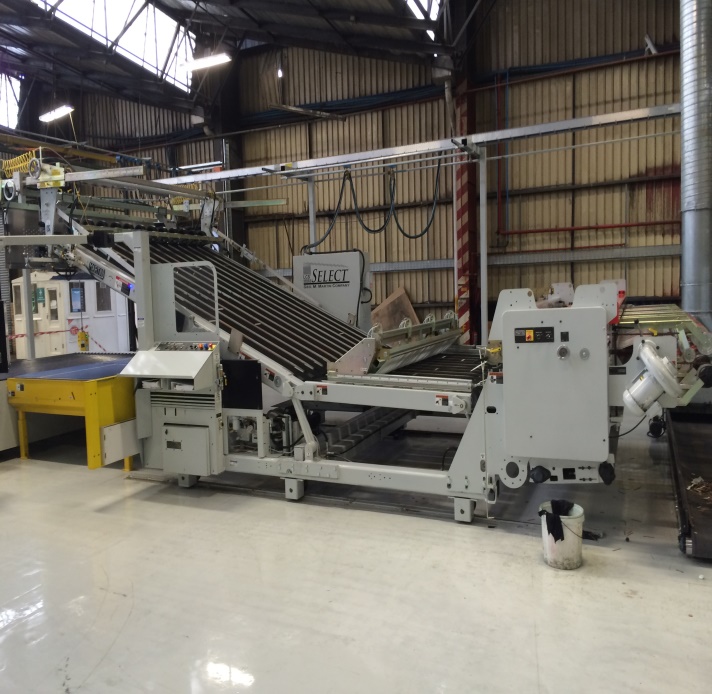

| Bundle Stacker | Geo. M. Martin SELECT® LCS high-speed bundle stacker |
| Bundle Transfer | Geo. M. Martin Bundle Transfer System and plastic belt breaker infeed conveyor |

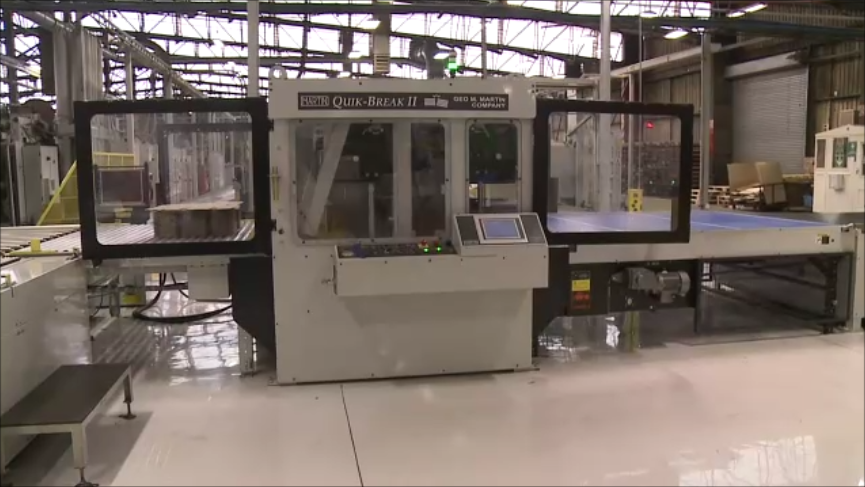

| Bundle Breaker | Geo. M. Martin Quik-Break II™ wide body (2.3 m) high-speed nicked bundle separator |
| Pairing / Accumulation | WSA bundle X-Y pairing conveyor, roller-ball turntable and smart accumulating bundle conveyor |

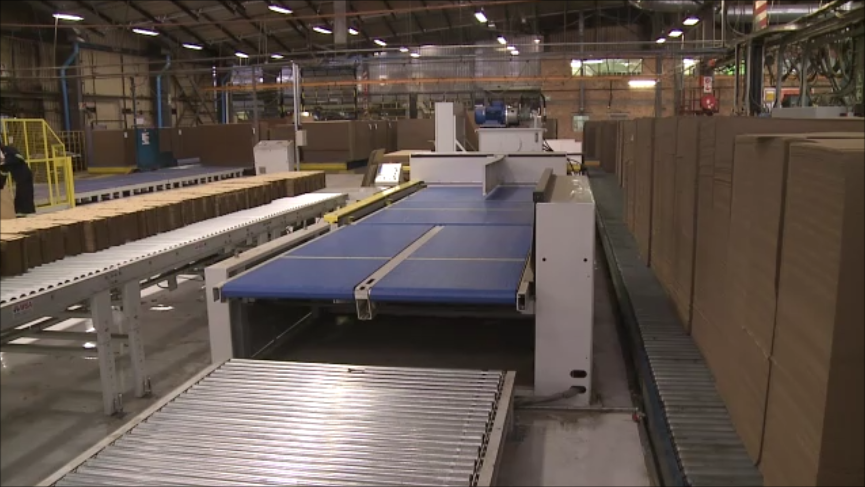

| Load Former | WSA high-speed tri-zone load former |
Outcome
Why it works
The high-speed ancillary equipment allows for full utilization and provides optimum performance from the modern high-production rotary die-cut machine.
