Plant Modernisation with 5-Color RDC
Full plant modernisation integrating a new 5-color high-graphics RDC with existing infrastructure and automation.
What we built
New-line replacement of multiple inefficient flat-bed die cutters in a Latin American box plant. Includes an automatic prefeeder, 5-color high-graphics all-servo rotary die cutter with chambered doctor blades, ink viscosity system, the latest drier and inline plate cleaning technology, high-efficiency stacker / bundle breaker, semi-automatic load former and floor conveyors fully integrated with existing lines.
Lines, machines and partners
| Prefeeder | WSA bottom-print fully-automatic prefeeder |
|---|---|

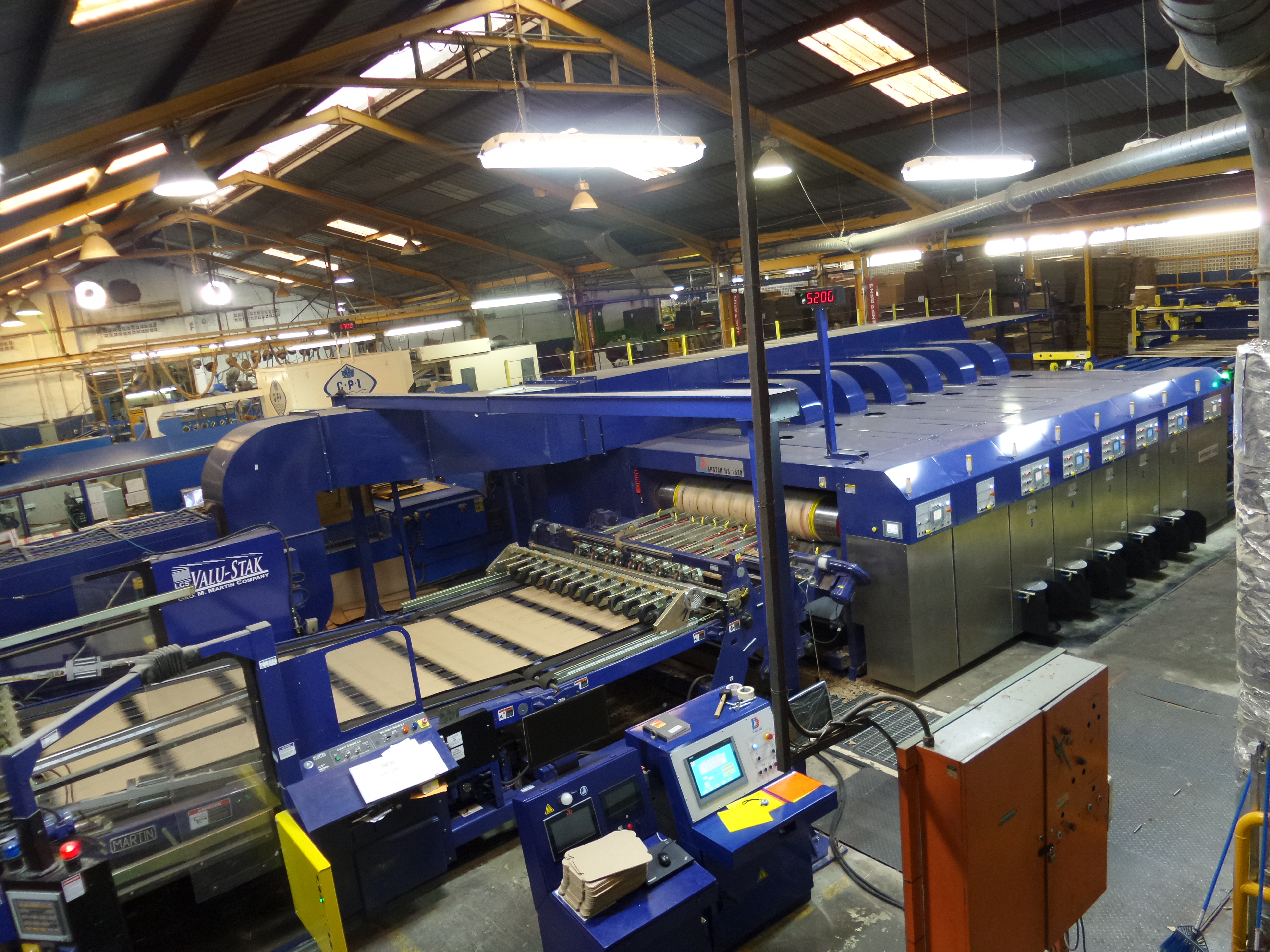

| 5-Color RDC | Dong Fang Apstar HS 1628 — 5-color all-servo rotary die cutter |
| Dryers / Plate Wash | JB Machinery dryers, KleenPlate® and VisionMaster™ monitoring system |

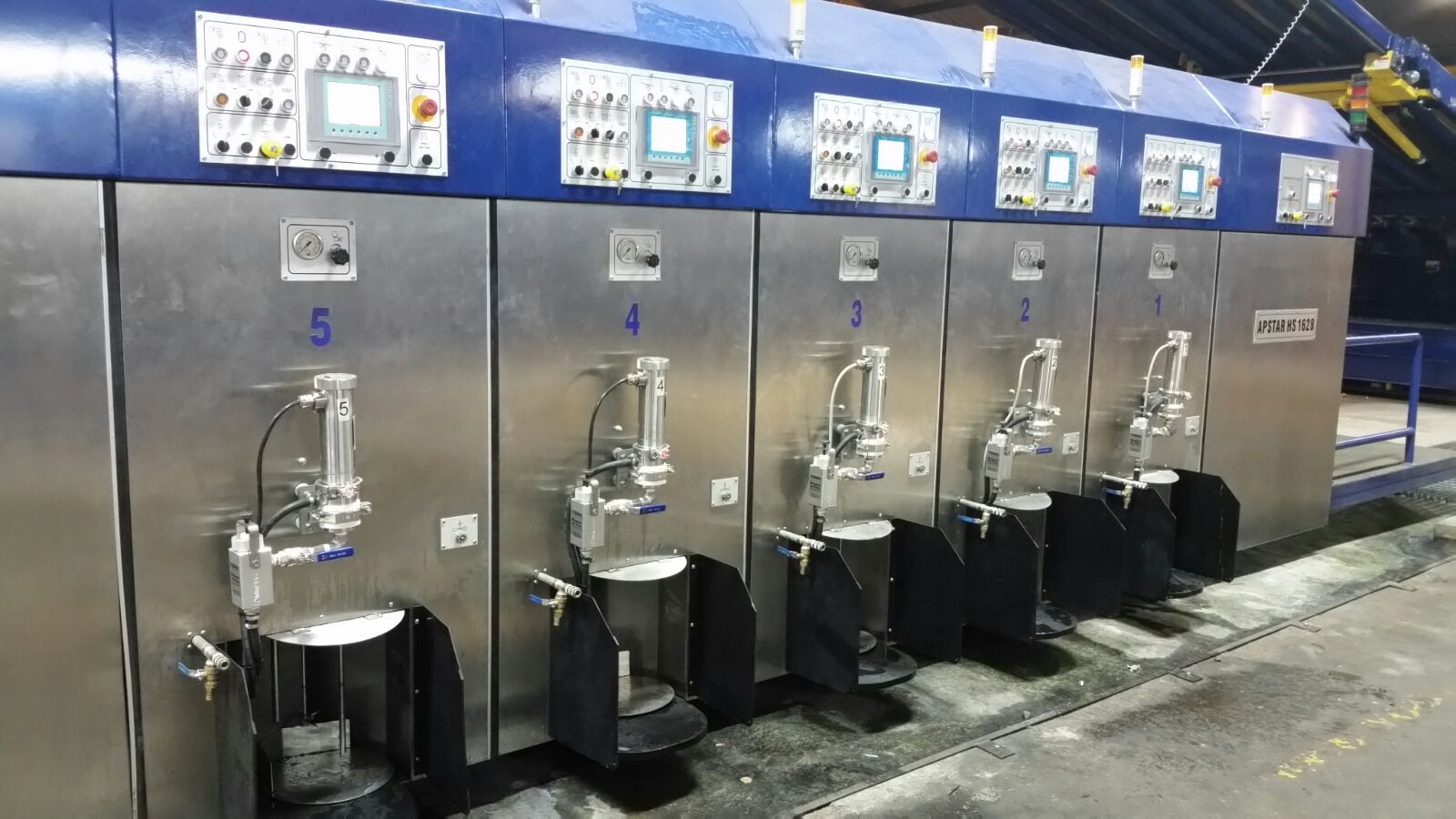

| Viscosity Control | InkSpec viscosity control system on all 5 colors |
| Conveyors | WSA plastic-belt infeed conveyors |
| Stacker | Geo. M. Martin ValuStak™ LCS rotary die cutter stacker |

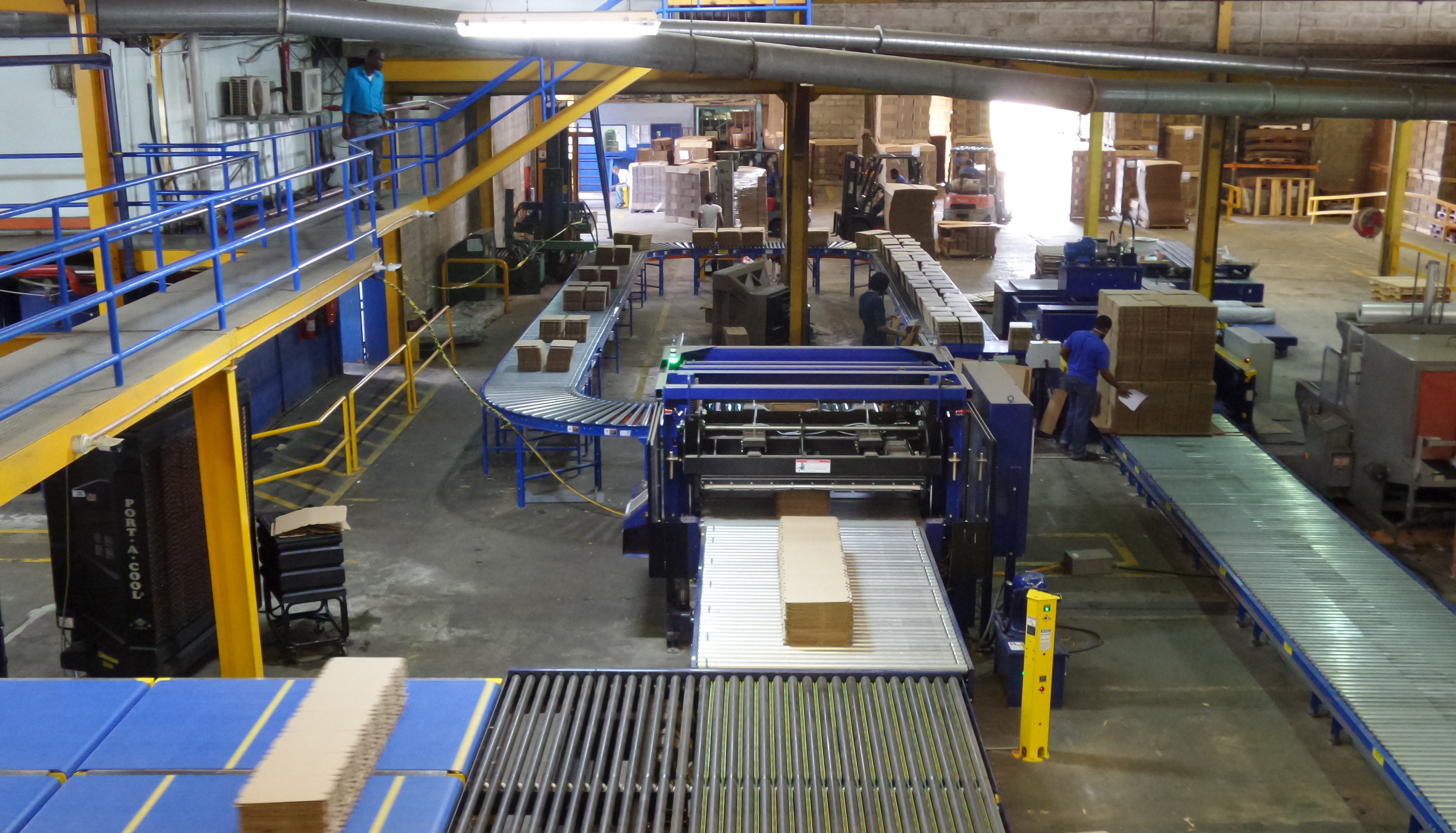

| Bundle Transfer | Geo. M. Martin Bundle Transfer System and plastic-belt breaker infeed conveyor |
| Bundle Breaker | Geo. M. Martin Quik-Break II™ nicked bundle separator |
| Line Conveyors | C & M Conveyor bundle-line and floor conveyors |
| Load Former | WSA semi-automatic load former with Pallet Master |
Why it works
Goettsch worked as single-source supplier to design a complete system combining top-line vendors, on budget and on a tight timeline — reducing costs while increasing efficiency and printing capabilities. Goettsch coordinated logistics, installation and follow-up service for the entire system.
7 photos from this installation
