The knowledgeable Goettsch parts sales staff, conversant in multiple languages, is ready to research your specific requirement, provide up-to-date technical data and do whatever it takes to keep your business running smoothly. We supply a wide variety of die supplies for the corrugated converting industry to the International Market*. If you don’t see it here, just ask!

Various diameters, thicknesses and lengths available – please ask if not listed

Available in lengths up to 102” (259cm) long!

High quality Birch or Maple flat die boards are also available!

Please advise your machine size, board width, thickness and length. Available for container load shipments – consolidate with your other die supplies!

Goettsch is proud to represent National Steel Rule*, whose commitment to customer satisfaction is unsurpassed. The roots of National can be traced back to a commercial die shop. This background gives them a unique understanding of the problems faced by our customers.

For close to forty years, National has been the professional die maker’s choice for cutting, creasing, and perforating rule as well as many other innovative products used in steel rule die cutting.

National uses only the highest quality steel purchased from carefully selected vendors. They stock over 250 varieties of steel which provides remarkable versatility when it comes to engineering products to meet your specific needs.

Klean Kut (8, 10, 12T)

Klean Kut (8, 10, 12T)

Euro Cut (8, 10, 12T)

Euro Cut (8, 10, 12T)

Creasing Rule – Rotary or Straight

Creasing Rule – Rotary or Straight

Perforating Rule - Regular

Perforating Rule - Regular

Perforating Rule - Serrated

Perforating Rule - Serrated

PERFormaX – Shelf Ready

PERFormaX – Shelf Ready

HEIGHT: For example, .990 or .970; to convert from mm to inches, divide by 25.4

THICKNESS: For example, 4 point (.056” / 1.42mm thick) or 3 point (.042” / 1.06mm thick). Generally, 4 point is used for rotary dies.

TYPE: Cutting, Scoring, Perforating – for serrated cutting rule, indicate the number of teeth per inch (TPI) – typically 8 or 12

BEVEL: Center or Side

If straight, with notches (straight notched ) or without notches (straight not notched )

If curved, the circumference of the die cylinder – for example, 60 or 50 inches, and the angle in reference to the cylinder, such as 45 or 90 degrees. Both measures are written together as “60/90” or “50/90”.

Length of the cutting section

Length of the space between teeth

A hard-to-beat, excellent ejector with very rapid recovery. This has been the workhorse standard for rotary die cutting for many years.

3/8” x 1/2” x 1-1/4” (9.5mm x 12.7mm x 31.8mm) with 5,120 pcs. per box

1/2” x 1/2” x 1-1/4” (12.7mm x 12.7mm x 31.8mm) with 5,120 pcs. per box

5/8” x 5/8” x 1-1/4” (15.9mm x 15.9mm x 31.8mm) with 4,096 pcs. per box

5/8” x 7/8” x 1-1/4” (15.9mm X 22.2mm x 31.8mm) with 2,816 pcs. per box

3/4” x 3/4” x 1-1/4” (19.1mm x 19.1mm x 31.8 mm) with 3,328 pcs. per box

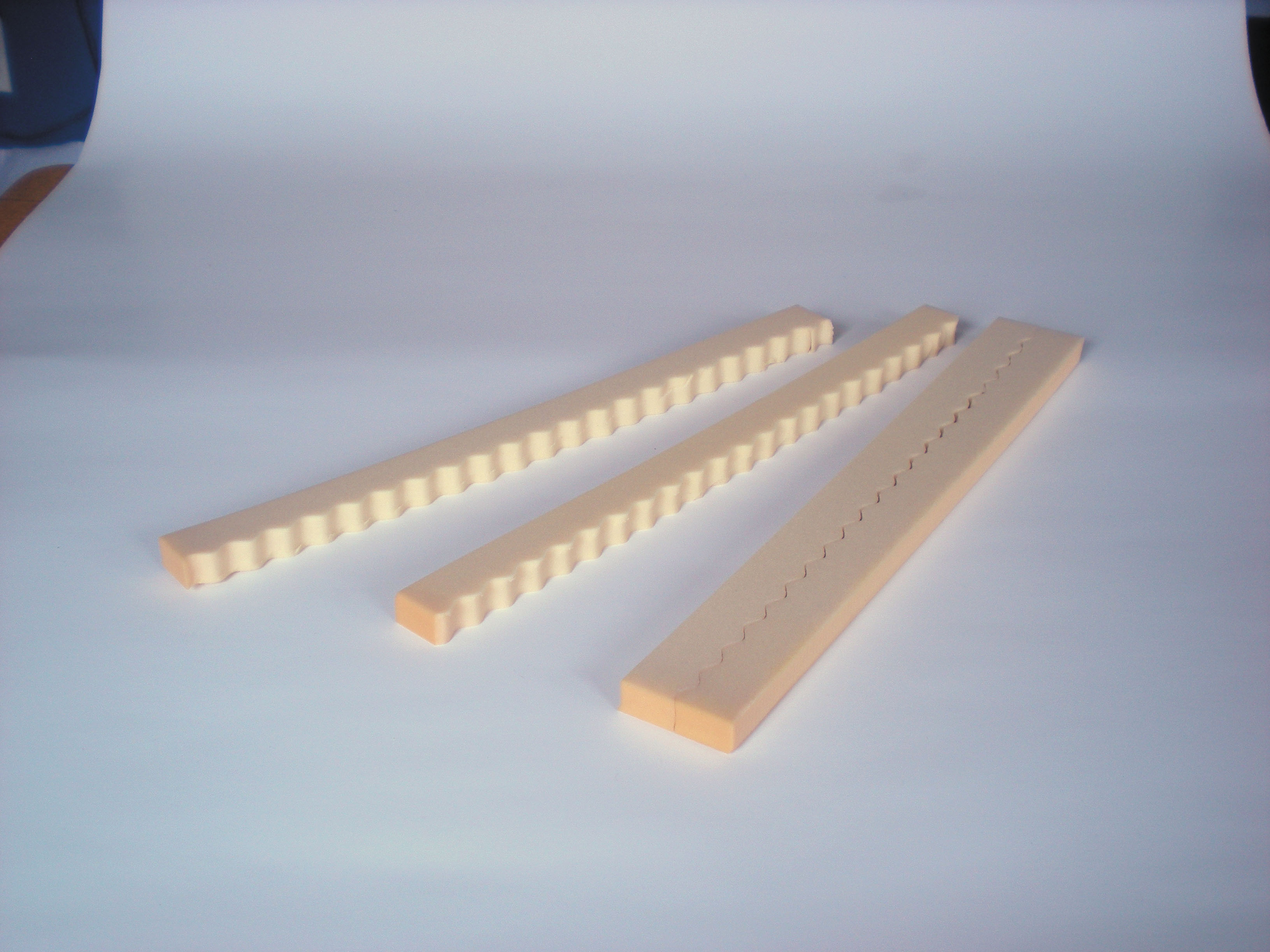

Dura-Strip is a micro-cellular elastomer, making it an excellent die ejection material. Dura-Strip is highly stable, durable, heat resistant and consistent!

3/8” (9.5mm) 5/8” (15.9mm)

7/16” (11.1mm) 11/16” (17.5mm)

1/2” (12.7mm) Other sizes on request

Standard for rotary die slots

Standard height is .625” (15.9mm)

3/16” (4.8mm) 3/8” (9.5mm)

1/4” (6.4mm) 7/16” (11.1mm)

5/16” (7.9mm) Other sizes on request

Please advise rubber type, thickness, width and length and number of boxes.

Since 1881, Helmold LLC has been the manufacturer and innovator of steel rule die making. Helmold’s steel rule, cutting punches, rule benders, rule notchers, rule cutters, miter machines, automatic rule processors and die making supplies and die making accessories are among the highest quality in the world. Their reputation for excellence and innovation is evident throughout the entire line of products and services.

Helmold Rule Cutter Available in 1-1/2” height. Handles up to 6 point rule. We recommend purchasing spare blades.

Available in 1-1/2” height. Handles up to 6 point rule. We recommend purchasing spare blades.

Helmold E-Z Heavy-Duty Notcher Handles up to 6 point rule. A 2-hole version handles up to ½” wide notches. Please specify “relieved” for rotary rule. A 4-hole version works well with pre-bent materials.

Helmold E-Z Heavy-Duty Notcher

Handles up to 6 point rule. A 2-hole version handles up to ½” wide notches. Please specify “relieved” for rotary rule. A 4-hole version works well with pre-bent materials.

Helmold E-Z Bender Bendall Includes standard accessories. Handles 3, 4 and even 6 point rule. Handle design on the E-Z Bender requires one fourth the effort of regular bender. Ask about additional accessories.

Helmold E-Z Bender Bendall

Includes standard accessories. Handles 3, 4 and even 6 point rule. Handle design on the E-Z Bender requires one fourth the effort of regular bender. Ask about additional accessories.

Helmond Cutawl K-12 Diemaker’s Saw High-speed, portable, precision saw designed for making rotary dies. Cuts straight lines, curves, or patterns with the free-floating 360 degree swivel head. Model K-12C is available with flat or curved base plates for cutting either 66” or 50” rotary die boards. Available in 115V or 230V, 50-60 HZ motors.

Helmond Cutawl K-12 Diemaker’s Saw

High-speed, portable, precision saw designed for making rotary dies. Cuts straight lines, curves, or patterns with the free-floating 360 degree swivel head. Model K-12C is available with flat or curved base plates for cutting either 66” or 50” rotary die boards. Available in 115V or 230V, 50-60 HZ motors.

Also Available: Spare blades, accessories, mandrills, dies, jig saw blades, serrated punches, mallets and rule pullers

Please indicate component and we will supply a full list of accessories and spares to complete your order.

National Steel Rule’s line of serrated punches cut cleanly through all board grades, including double wall and wet board right off the corrugator, made from the highest quality tube steel.

Please advise outside diameter and bevel.

All sizes available – Metric and Imperial. Please advise diameter, threads and length. For inserts, advise if slotted hardened, with or without adhesive.

*Available to specific countries; please consult with Goettsch International for availability.
