Corrugated Converting Solutions

Stitchers

Name: Stitchers
Brand: Gazzella Atlantique (Sodeme)

Gazzella Atlantique (Sodeme)new

Gazzella Atlantique (formerly Sodeme) has specialized in the manufacture of stitching machinery for the corrugated industry since 1979. Gazzella Atlantique manufactures a wide range of machines to fold corrugated with 3 kinds of joining: stitching, gluing and taping. All Gazzella Atlantique stitchers can easily stitch single, double or triple wall corrugated. Goettsch is proud to supply the Gazzella Atlantique line of products to the International Market*. Goettsch understands the investment you have in your facility and our professionals can team up with you to provide the right equipment solution for your application, facility and budget. And, rest assured, we’re always there to provide on-going parts and service support.

Request a Quote Contact Us

TW 7200 – Semi-Automatic Stitcher-Gluer

For Single and Two-Piece boxes, the TW 7200 accommodates solid board, single wall, double wall, and triple wall board and can stitch up to 250 cartons per hour (stitching speed of 750 c/min). This Stitcher can handle infeed flat boards up to 7200mm (283.46 inches), is run by only 1 operator and boasts a short 15 minute changeover time.

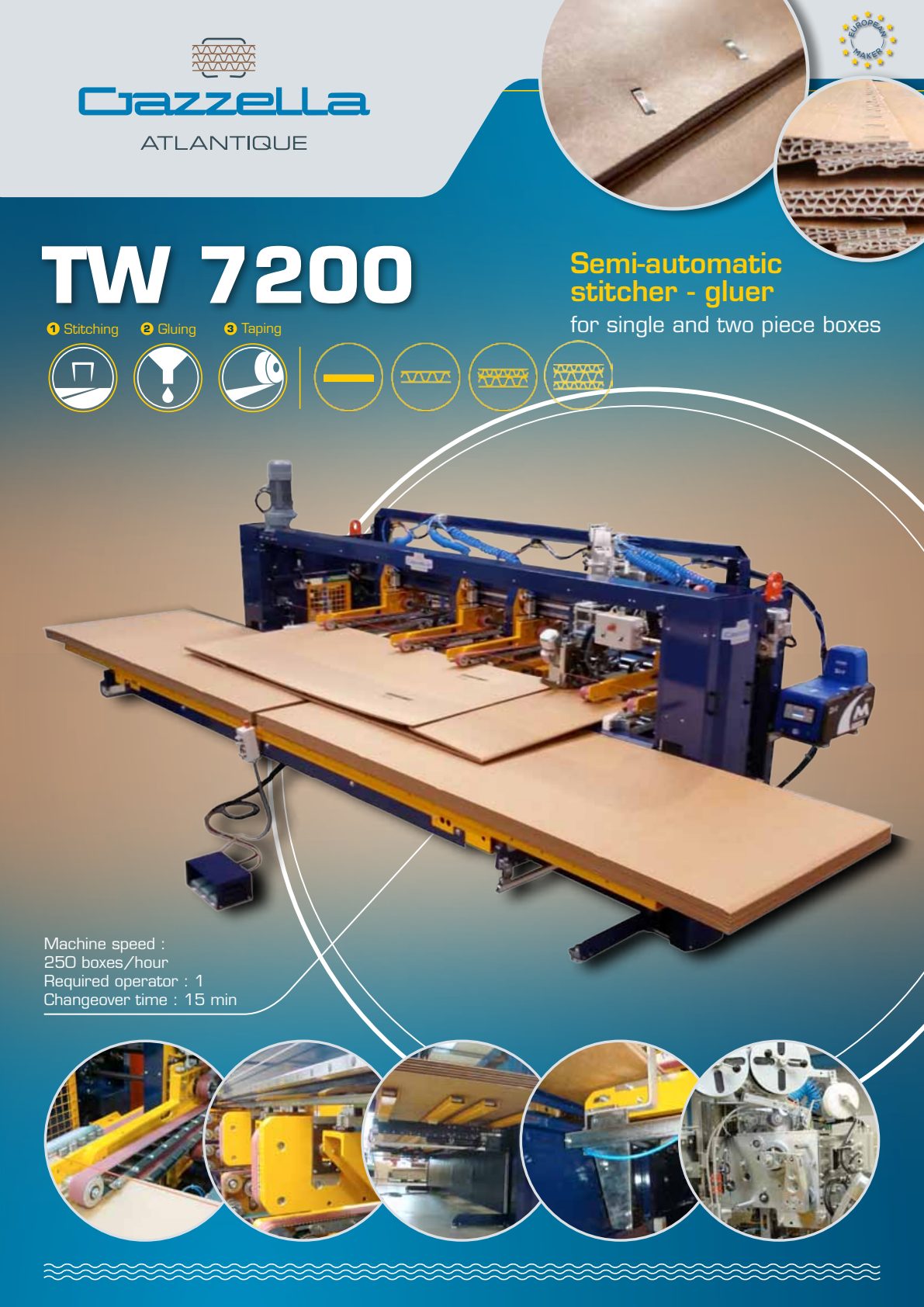

PDF · 999 KB Gazzella fiche TW7200 Brochure 4 15

Features:

The TW 7200 offers 3 loading possibilities:

Fixed table (height 1100 mm / 43.31 inches)
Integrated lift table
Hydraulic table

Gluing options

Hot Melt Gluing for single and two-piece boxes
PVA Gluing for single-piece boxes
Taping for single and two-piece boxes

Mixed Joint is available

Hot Melt + PVA
Hot Melt + Stitching
PVA + Stitching

Other Options:

Stacker for pallets or counted batches
Box turner to alternate box joining flaps

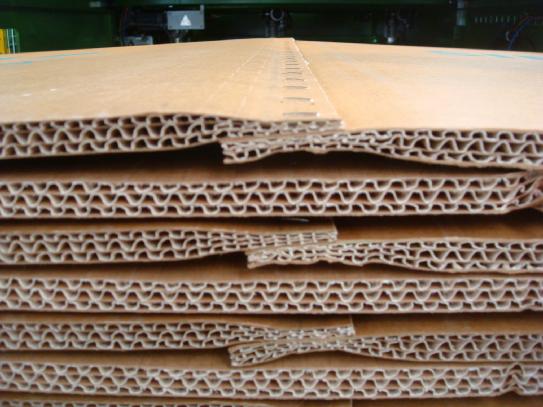

Shown is a stitched triple wall board

gazzella close up

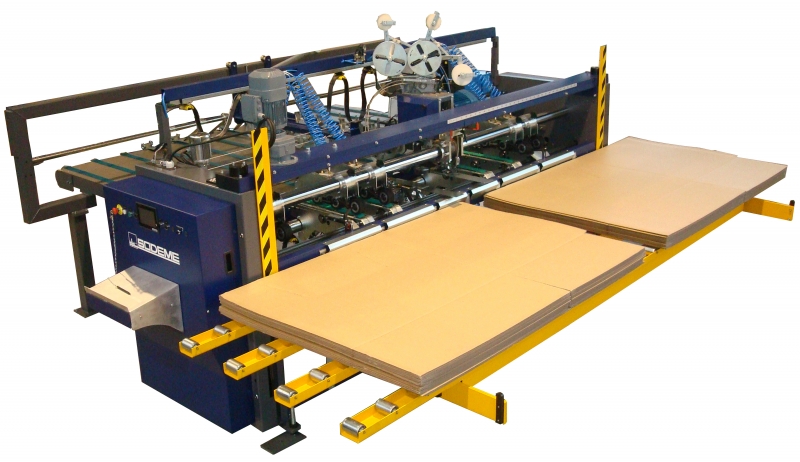

TO 6400 – Semi-Automatic Stitcher-Gluer

For single and two-piece boxes, the TO 6400 accommodates solid board, single-wall and double-wall corrugated board, and can stitch up to 250 cartons per hour (stitching speed of 700 stitches/minute). This stitcher can handle infeed flat boards up to 6400 mm (251.97 inches), is run by only 1 operator, and boasts a short 15-minute changeover time.

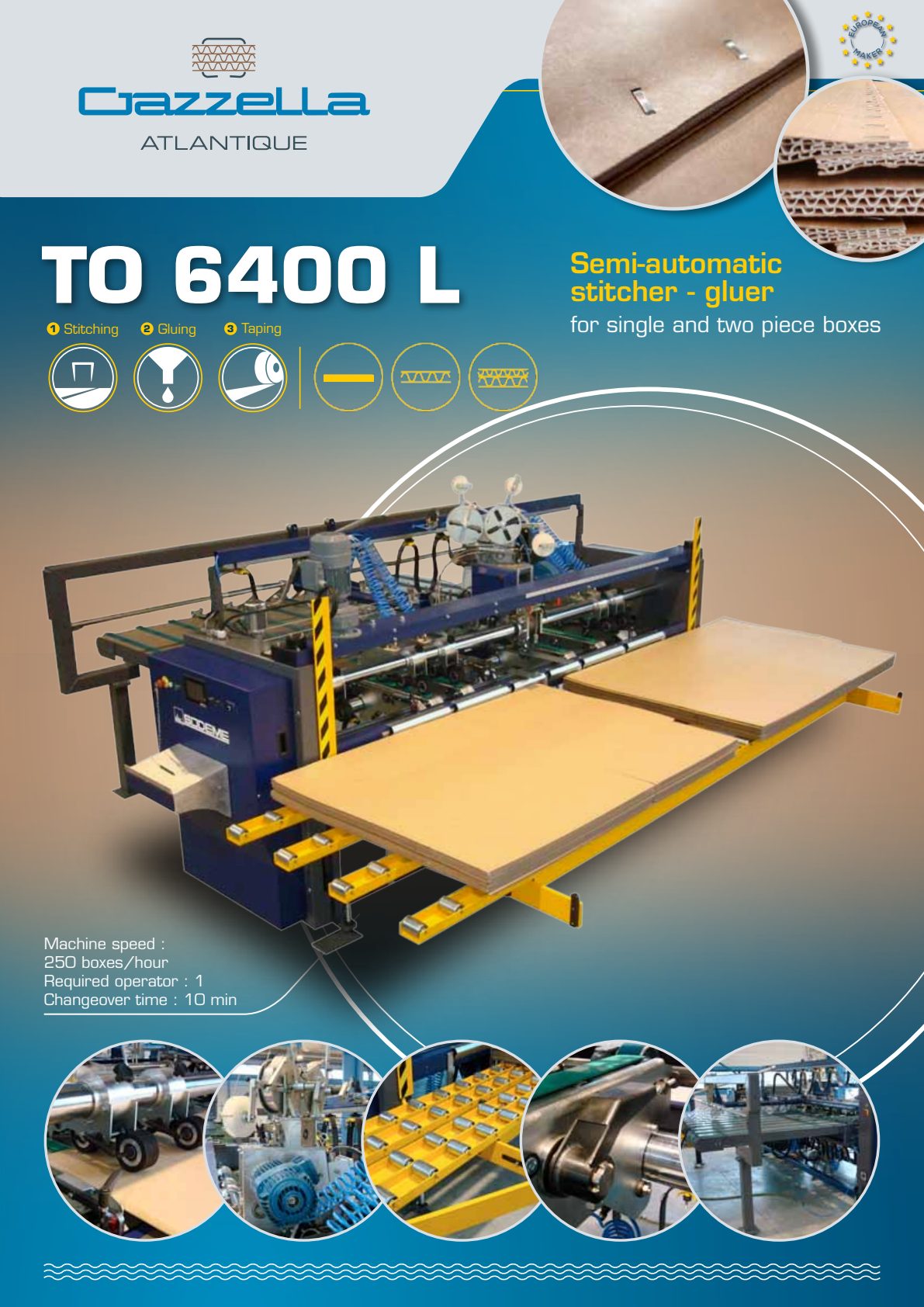

PDF · 1011 KB Gazzella_fiche_TO6400L Brochure 4-15

Features:

Mixed Joint is available

Hot Melt + PVA
Hot Melt + Stitching

The TO 6400 offers 3 loading possibilities:

Fixed table (height 1100 mm / 43.31 inches)
Integrated lift table
Hydraulic table

Other Options:

Stacker for pallets or counted batches
Box turner to alternate box joining flaps

Gluing Options:

Hot Melt Gluing for single and two-piece boxes
Taping for single and two-piece boxes
PVA Gluing for single piece boxes

PAC 40/48 Fully Automatic Folder-Stitcher-Gluer

For Single piece boxes, this fully automatic stitcher-gluer runs at the dynamic speed of 1200 boxes per hour and with only 1 operator and boasts a short 15 minute changeover time. The PAC 40 or PAC 48 accommodates solid board, single wall, double wall and triple wall corrugated board and can stitch up to 1400 stitches/minute). This Stitcher can handle infeed flat boards from 6700mm (263.78 inches up to 7700mm (303.15 inches).

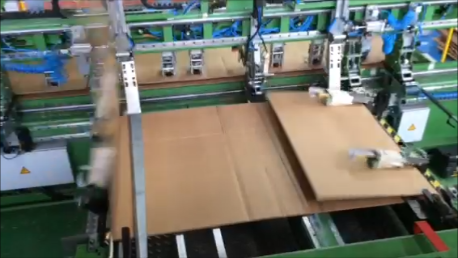

Folder Section of PAC 40-48
