Load Formers & Automatic Palletizers

• 1500 x 1500mm
• 1500 x 1800mm
• 1800 x 1800mm
• 1800 x 2100mm

The WSA Tri-Zone High Speed Load Former was designed specifically for the latest high speed flexo folder gluers, running at speeds of up to 400 boxes per minute. The unique design minimizes all cycle times over a conventional load former and allows for the fastest load discharge times in the industry.  Maximum sustained running speeds can be achieved even when running a one up or one by two bundle stacking pattern.

The Tri-Zone Load Former features all plastic belt transfer conveyor for maximum load stability, a user friendly touch screen operator interface with full bundle line controls and an air transfer table.

This model can also be equipped with an optional pallet un-stacking and infeed delivery system.

Contact Goettsch International to learn how to maximize the productivity of your new Flexo Folder Gluer with the WSA High Speed Load Former solution.

• 1500 x 1500mm
• 1500 x 1800mm
• 1800 x 1800mm
• 1800 x 2100mm

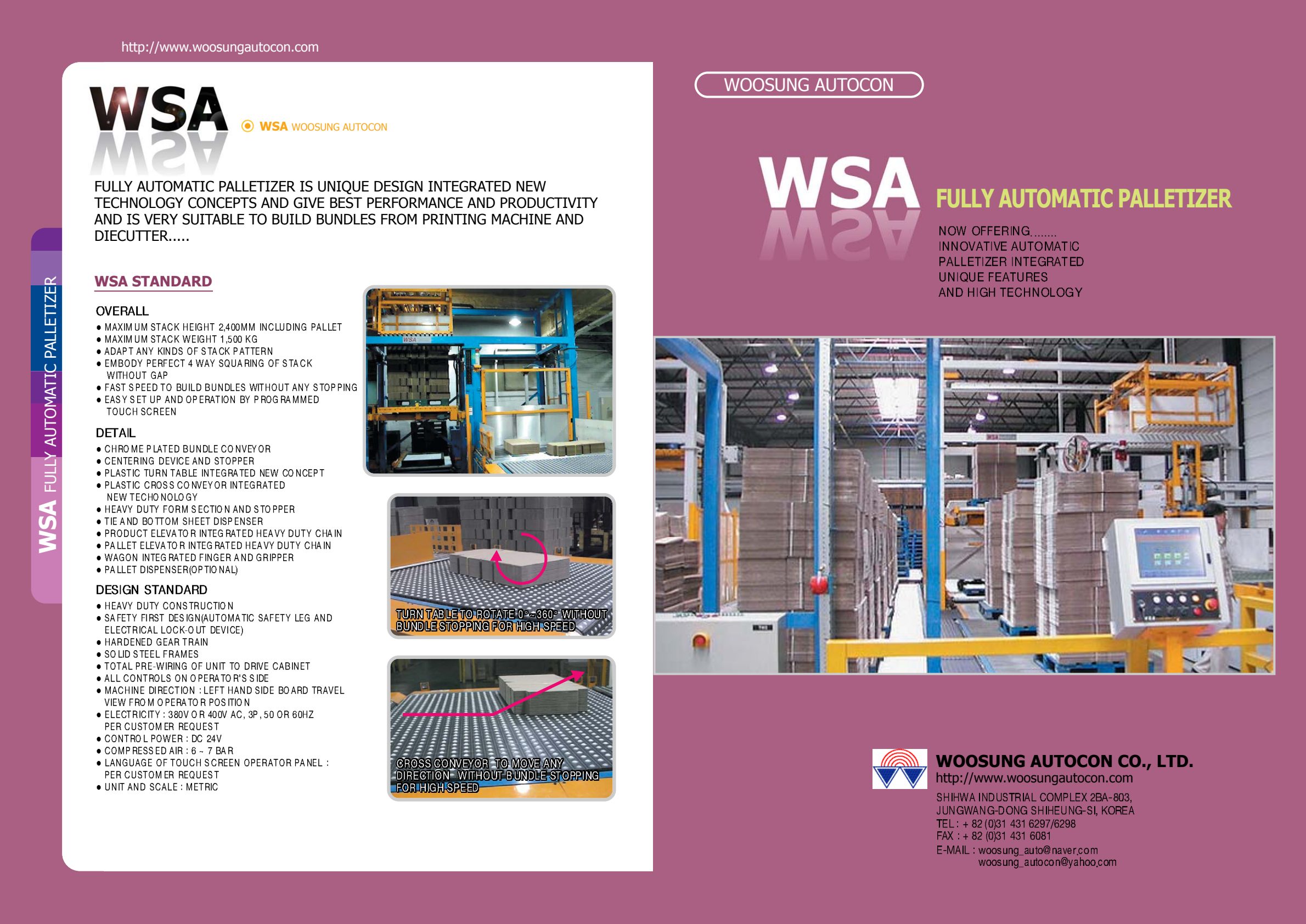

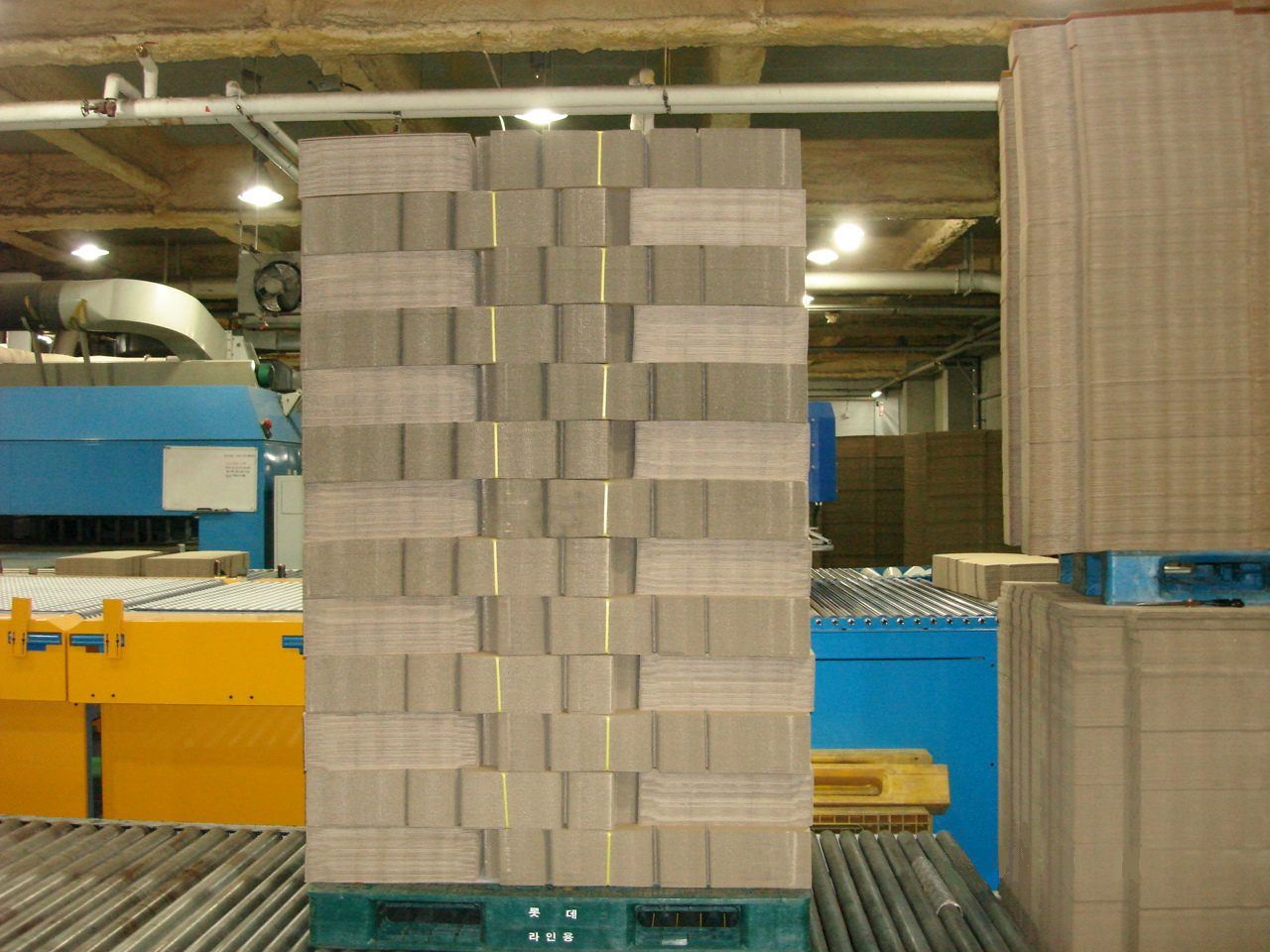

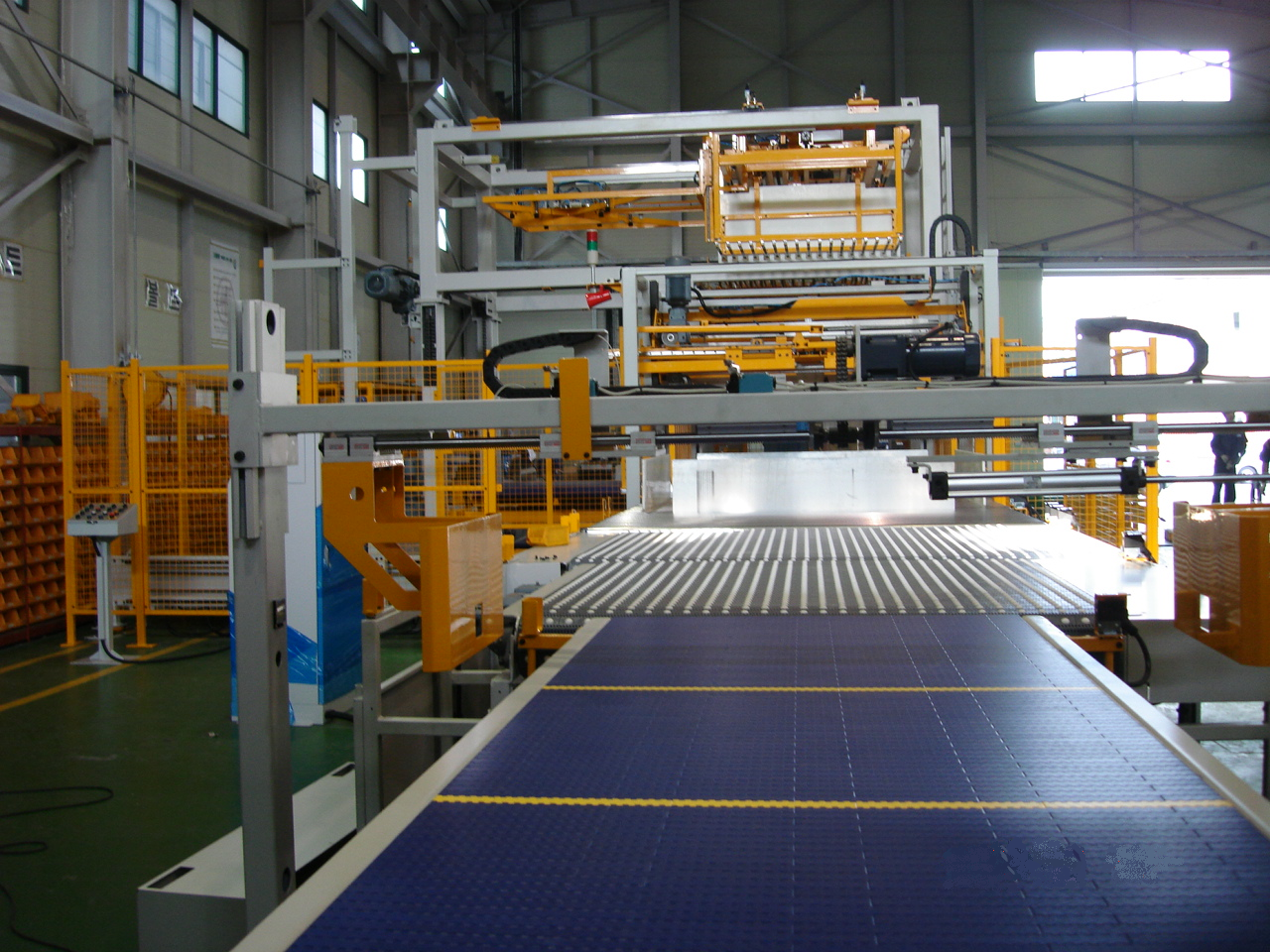

The WSA Fully Automatic Palletizer is available in a Right-Angle or an In-line Configuration and is designed to automatically stack bundles into any preselected stacking pattern from a high speed flexo folder gluer or rotary die cutter line. The system can be fully integrated with the press and can stack either onto a bottom sheet or onto a pallet. Tie sheets are automatically inserted as preset on the Touch Screen Computer.

Some of the standard features of the WSA Fully Automatic Palletizer are:

• In-line or Right angle configuration
• High Speed Bundle Rotator and Bundle Side Positioning
• Tier/Layer Doubler
• Automatic Pallet or Bottom Sheet Insert
• Automatic Tie Sheet Insert System
• Stack re-squaring system
• Ethernet for Remote Support
• Allen Bradley (or Siemens) PLC
• SICK Safety Sensors
• Large Color Touch Screen Operator Interface

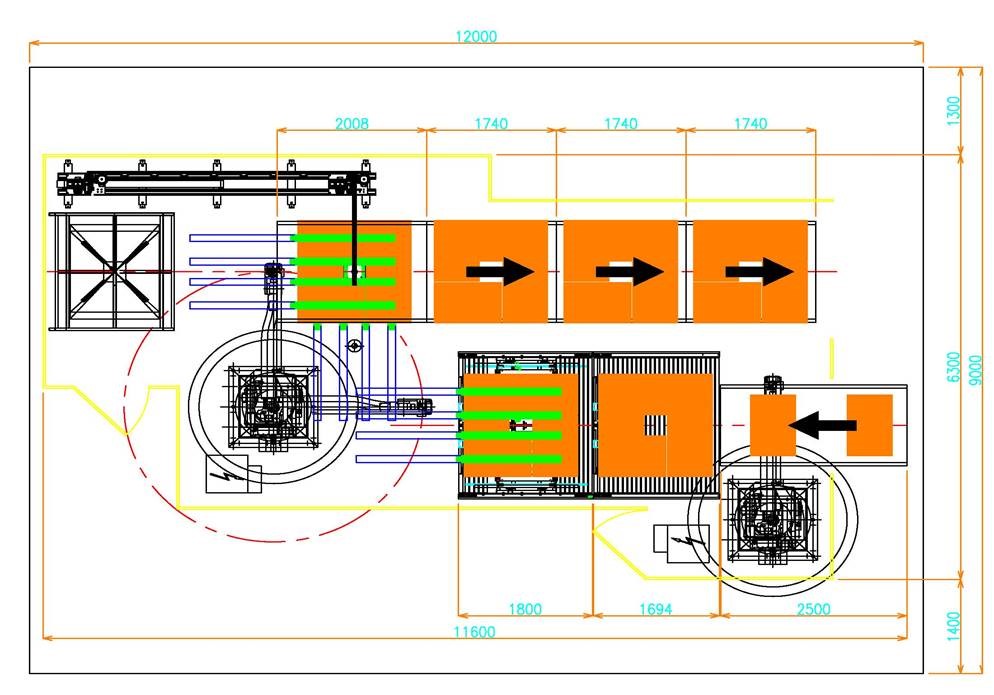

The newly launched WSA High Speed Robotic Palletizer represents the next generation in robotic palletizing for today’s very latest High Speed FFG’s and RDC machines.

• Multi Robot solution for faster running speeds and expanded stack patterns
• Each Tier/ Layer is pre-formed by the first robot and then doubled
• Main robot transfers two complete layers in one motion onto the stack
• Independent bottom and tie sheet delivery system
• Faster Cycle Times, Improved stack quality and expanded stack patterns

* Available to specific countries; please consult with Goettsch International for availability.
