STITCHERS

Gazzella Atlantique

Gazzella Atlantique (formerly Sodeme) has specialized in the manufacture of stitching machinery for the corrugated industry since 1979.  Gazzella Atlantique manufactures a wide range of machines to fold corrugated with 3 kinds of joining: stitching, gluing and taping.  All Gazzella Atlantique stitchers can easily stitch single, double or triple wall corrugated. Goettsch is proud to supply the Gazzella Atlantique line of products to the International Market*.

Goettsch understands the investment you have in your facility and our professionals can team up with you to provide the right equipment solution for your application, facility and budget. And, rest assured, we’re always there to provide on-going parts and service support.


TW 7200 – Semi-Automatic Stitcher-Gluer

 Watch the TW7200 Gazzella Atlantique Stitcher-Gluer in action! Learn more about the TW7200 Semi-Automatic Stitcher-Gluer in the Gazzella Atlantique brochure.

For Single and Two-Piece boxes, the TW 7200 accommodates solid board, single wall, double wall, and triple wall board and can stitch up to 250 cartons per hour (stitching speed of 750 c/min).  This Stitcher can handle infeed flat boards up to 7200mm (283.46 inches), is run by only 1 operator and boasts a short 15 minute changeover time.


Shown is a stitched triple wall board

The TW 7200 offers 3 loading possibilities:

  • Fixed table (height 1100 mm / 43.31 inches)
  • Integrated lift table
  • Hydraulic table
  • Hot Melt Gluing for single and two-piece boxes
  • PVA Gluing for single piece boxes
  • Taping for single and two-piece boxes
  • Mixed Joint is available
    • Hot Melt + PVA
    • Hot Melt + Stitching
    • PVA + Stitching
  • Stacker for pallets or counted batches
  • Box turner to alternate box joining flaps



TO 6400 – Semi-Automatic Stitcher-Gluer

  Watch the TO 6400 Gazzella Atlantique Stitcher-Gluer in action Learn more about the TO 6400 Semi-Automatic Stitcher-Gluer in the Gazzella Atlantique brochure.

For Single and Two-Piece Boxes, the TO 6400 accommodates solid board, single wall and double wall corrugated board and can stitch up to 250 cartons per hour (stitching speed of 700 stitches/minute). This Stitcher can handle infeed flat boards up to 6400mm (251.97 inches), is run by only 1 operator and boasts a short 15 minute changeover time.

The TO 6400 offers 3 loading possibilities:
  • Fixed table (height 1100 mm / 43.31 inches)
  • Integrated lift table
  • Hydraulic table
  • Hot Melt Gluing for single and two-piece boxes
  • Taping for single and two-piece boxes
  • PVA Gluing for single piece boxes
  • Mixed Joint is available
    • Hot Melt + PVA
    • Hot Melt + Stitching
  • Stacker for pallets or counted batches
  • Box turner to alternate box joining flaps


PAC 40/48 Fully Automatic Folder-Stitcher-Gluer

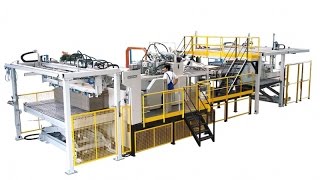

 Watch the PAC 40 Gazzella Atlantique Fully Automatic Folder-Stitcher-Gluer in action!  Learn more about the PAC 40/48 Fully Automatic Folder-Stitcher-Gluer in the Gazzella Atlantique brochure.

For Single piece boxes, this fully automatic stitcher-gluer runs at the dynamic speed of 1200 boxes per hour and with only 1 operator and boasts a short 15 minute changeover time.  The PAC 40 or PAC 48 accommodates solid board, single wall, double wall and triple wall corrugated board and can stitch up to 1400 stitches/minute).  This Stitcher can handle infeed flat boards from 6700mm (263.78 inches up to 7700mm (303.15 inches).

Folder Section of PAC 40-48
Folder Section of PAC 40-48

  • Static folding with motorized adjustments
  • Patented squaring section of folder delivery
  • Fixed stitching shoe with oscillating riveting anvil (patented)
  • Cycle controlled by programmable automation
  • Re-squaring system on top of pile
  • Automatic pile entrance
  • Stacker for pallets or counted batches
  • Hot Melt or PVA Gluing
  • Taping
  • Movable stitching axis

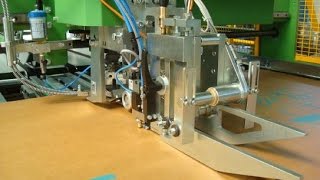

PAC 40/48 Stitching Head and Squaring Shoe

Watch the PAC 40/48 Stitching Head and Squaring Shoe in action!

PAC 40/48 Folder Section

Watch the PAC 40/48 Folder Section in action!



* Available to specific countries; please consult with Goettsch International for availability.Request A Quote
